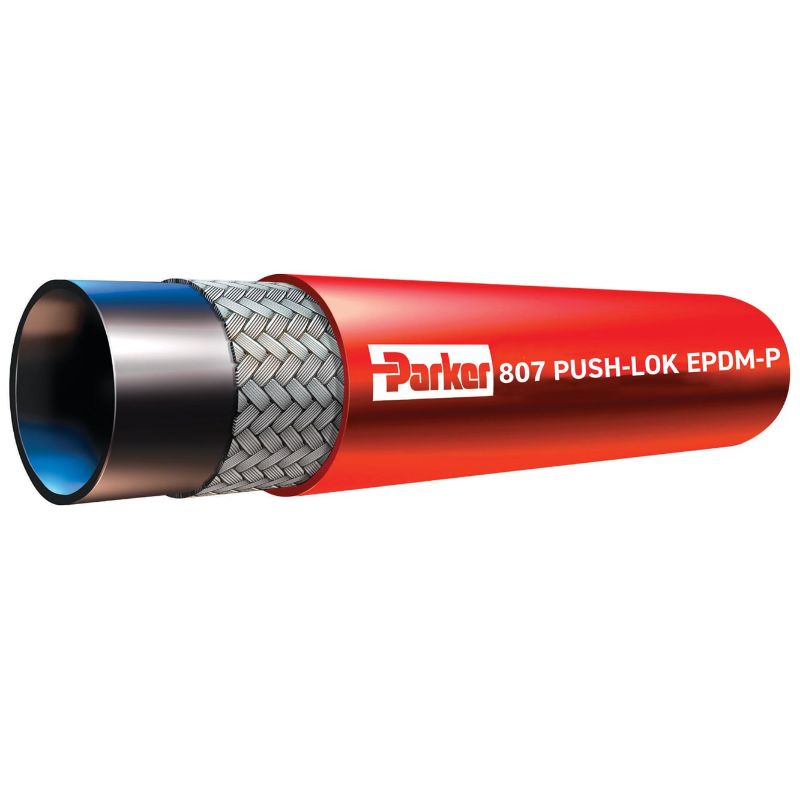

Parker 807-10-RED-RL - Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 807-10-RED-RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Fitting	82 Series	Cover Material	Red synthetic rubber smooth finish
Hose Outside Diameter	0.91 inch	Media	air, water (including PCW), coolant solutions
Division	Hose Products Division	Application	Media Transfer
Minimum Operating Temperature	212 °C	Specifications Met	UL94 V-0 Flame resistance rating
Hose Inner Tube Material	Black EPDM peroxide cured	Minimum Bend Radius	88.9 mm
Hose Reinforcement Material	One fiber braid	Maximum Operating Temperature	100 °C
Weight	0.30 kg/m	Maximum Operating Pressure	150 psi
