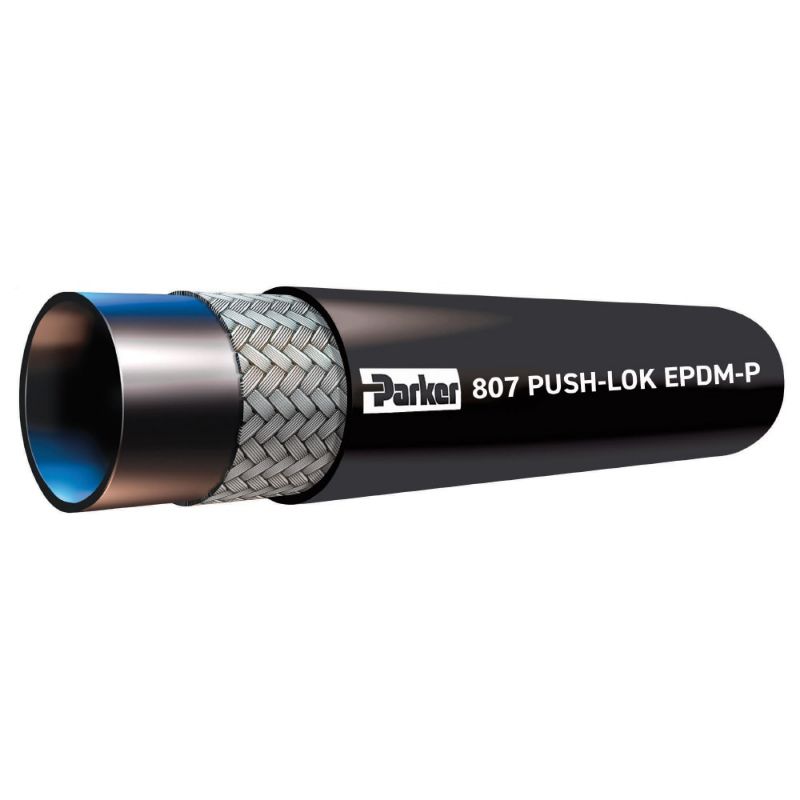

Parker 807-10-BLK-RL - Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 807-10-BLK-RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	air, water (including PCW), coolant solutions	Division	Hose Products Division
Maximum Operating Temperature	212 °F	Weight	0.30 kg/m
Application	DI water and glycol based coolant solutions, air, phosphate ester	Hose Reinforcement Material	One fiber braid
Compatible Fitting	82 Series	Hose Inner Tube Material	Black EPDM peroxide cured
Hose Outside Diameter	23.1 mm	Cover Material	Black synthetic rubber smooth finish
Minimum Operating Temperature	212 °C	Maximum Operating Pressure	150 psi
Specifications Met	UL94 V-0 Flame resistance rating	Minimum Bend Radius	88.9 mm
