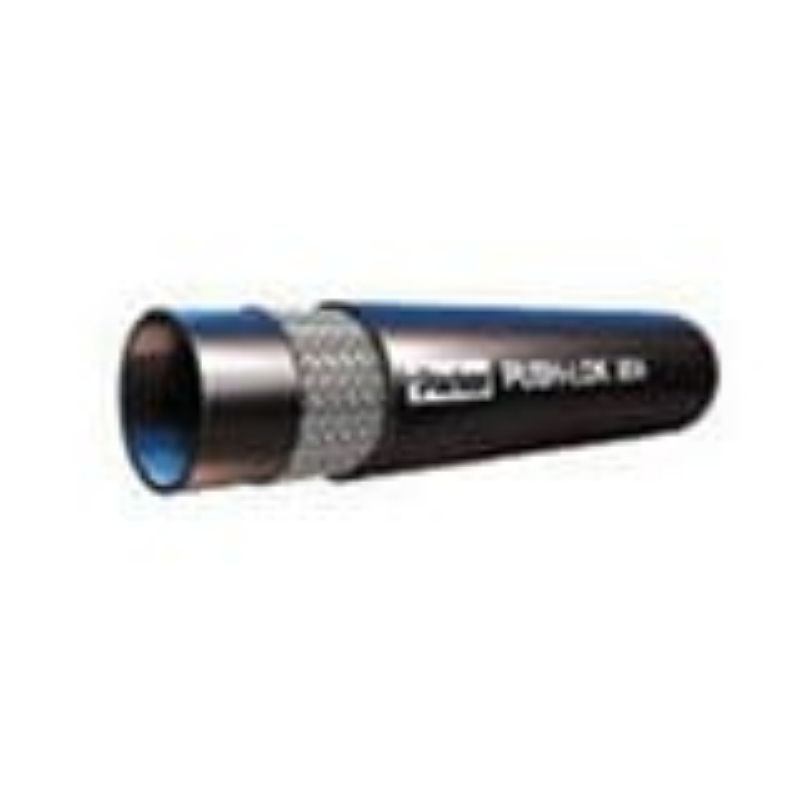

Parker 804-8 - Push-Lok Dry Air and Hot Water Multipurpose Constant Pressure Hose 150 PSI – 804 Hose

Parker's 804 hose is a dry air and hot water hose with a working pressure of 150 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 804-8

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Outside Diameter	0.780
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Nominal Hose Inside Diameter	12
Specifications Met	N/A	Maximum Operating Temperature	158 °F (Air)
Application	Phosphate Ester	Inside Diameter	1/2
Minimum Bend Radius	5	Maximum Operating Pressure	150
Vacuum Pressure Rating	15	Design Factor	4:1
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Media	Air (Compressed Air with traces of Oil)
Compatible Fitting	82 Series	Weight	0.18
Minimum Operating Temperature	-40 °C (Oil)	Division	Hose Products Division
Hose I.D. (size)	-8
