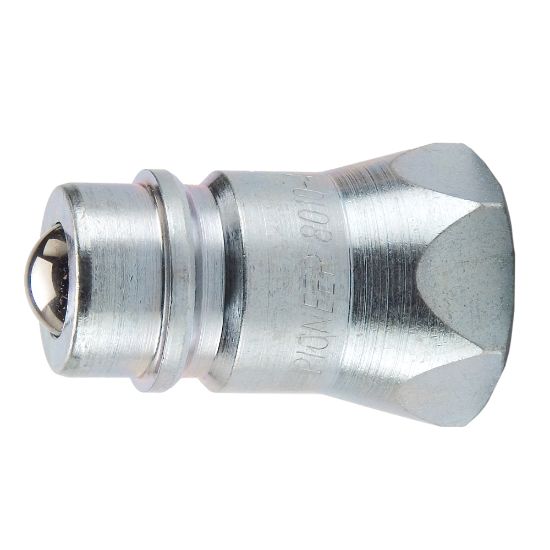

Parker 8010-29BSPP - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series

Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8010-29BSPP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Media	Hydraulic
Body Size	1/2 inch	Seal Material	n/a
Minimum Operating Temperature	-40 °F	Specifications Met	ISO 5675
Flow Rate	12 Gal/min	Maximum Operating Pressure	3000 psi
Thread Size	Female	Application	Hydraulics
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Maximum Operating Temperature	250 °F	Coupling Half	Nipple
Connection Type	BSPP	Port Connection (inch)	1/2 - 14
Valve Style	Ball
