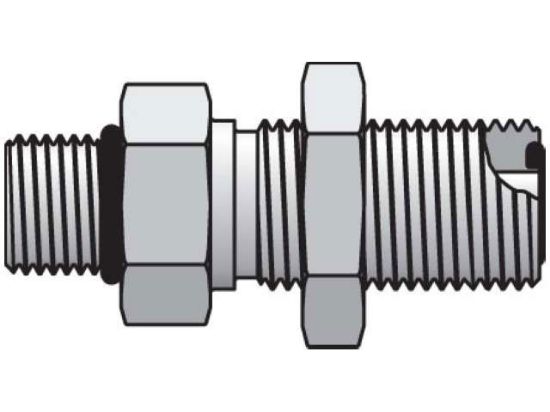

Parker 8 WF5OLO-S FKM - Seal-Lok ORFS Straight WF5OLO

Seal-Lok - Straight Thread Bulkhead Connector ORFS / SAE-ORB

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8 WF5OLO-S FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Pkg Qty/UOM	10 EA	End 1	1/2 Inch
O-Ring/Seal Material	Fluorocarbon	Pkg Qty	10
End 2	3/4-16 UN/UNF-2A	Tube Fitting/Adapter Type	ORFS, Seal-Lok O-Ring Face Seal
Material	Steel	O-Ring/Seal Material	Fluorocarbon
Parker Division	Tube Fitting	Inch/Metric	Inch
Configuration Type	Straight	End 1	1/2 Inch
Configuration Sub-Type	Straight Thread Bulkhead Connector ORFS / SAE-ORB	End 1 Type	Inch
End 2	3/4-16 UN/UNF-2A	End 2 Type	UN/UNF-2A
Series	ORFS	Trade Name	Seal-Lok
Parker Group	Fluid Connector

Product resources

Seal-Lok O-Ring Face Seal Fittings (PDF)
