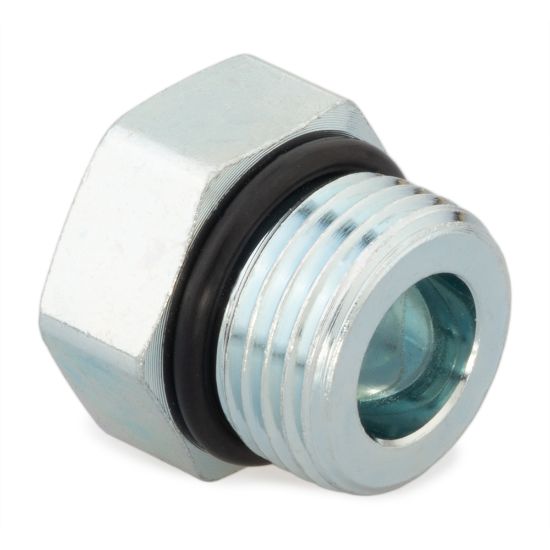

Parker 8 P5ON-SS FKM - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8 P5ON-SS FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Fitting Type	Port Adapter	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	7200 psi
Connection 4 Thread Size	na	Body Material	Stainless Steel
Connection 1 Style	Male SAE-ORB	Connection 3 Style	na
Connection 1 Thread Size (inch)	3/4-16	Length (inch)	na
Body Material	Stainless Steel	Shape	Plug
Connection Style	Hex Head Plug	Connection 2 Thread Size (inch)	na
Connection 1 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
O-Ring Material	90 Durometer Fluorocarbon	Connection 2 Thread Size (mm)	na
Connection 2 Style	na

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
