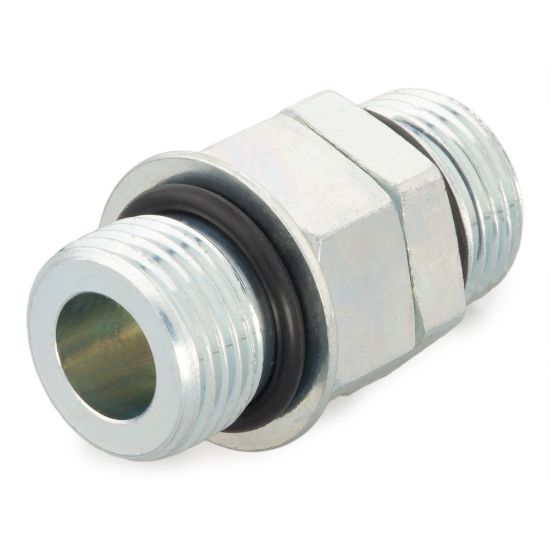

Parker 8 F5OHAO-S FKM - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8 F5OHAO-S FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Fitting Type	Port Adapter
Maximum Dynamic Pressure	6000 psi	Connection 4 Size	na
Connection 4 Thread Size	na	Body Material	Steel
Connection 1 Style	Male SAE-ORB	Connection 3 Style	na
Connection 2 Thread Size (inch)	3/4-16	Length (inch)	na
Connection 1 Thread Size (inch)	3/4-16	Body Material	Steel
Shape	Straight	Connection 1 Thread Size (mm)	na
O-Ring Material	90 Durometer Fluorocarbon	Connection 3 Thread Size (inch)	na
Connection 2 Style	Male SAE-ORB	Connection 2 Thread Size (mm)	na
Connection Style	SAE-ORB to SAE-ORB
