*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

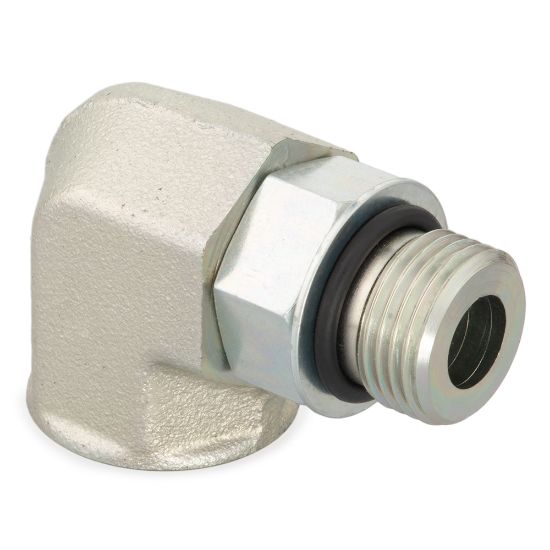

Parker 8 AOEG5-S - Pipe Fittings and Port Adapters

Name: Parker 8 AOEG5-S - Pipe Fittings and Port Adapters
SKU: 8 AOEG5-S
Price: 48.02 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

AFP Availability:

15 In Stock

Norfolk, VA	12
Ashland, VA	1 (Pickup only)
West Knoxville, TN	1
Johnson City, TN	1 (Pickup only)

Partner Available:

353 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 8 AOEG5-S

$48.02/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Body Material	Steel	Fitting Type	Port Adapter
Connection 4 Thread Size	na	Maximum Dynamic Pressure	4000 psi
Connection 4 Size	na	Dimensional Weight	0.062320143884892085 lb
Body Material	Steel	Connection 2 Thread Size (inch)	3/4-16
Connection 1 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
Shape	90° Elbow	Connection 2 Thread Size (mm)	na
Connection Style	SAE-ORB to SAE-ORB	Connection 2 Style	Female SAE-ORB
O-Ring Material	90 Durometer Nitrile	Connection 1 Style	Male SAE-ORB
Connection 3 Style	na	Length (inch)	na
Connection 1 Thread Size (inch)	3/4-16

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
