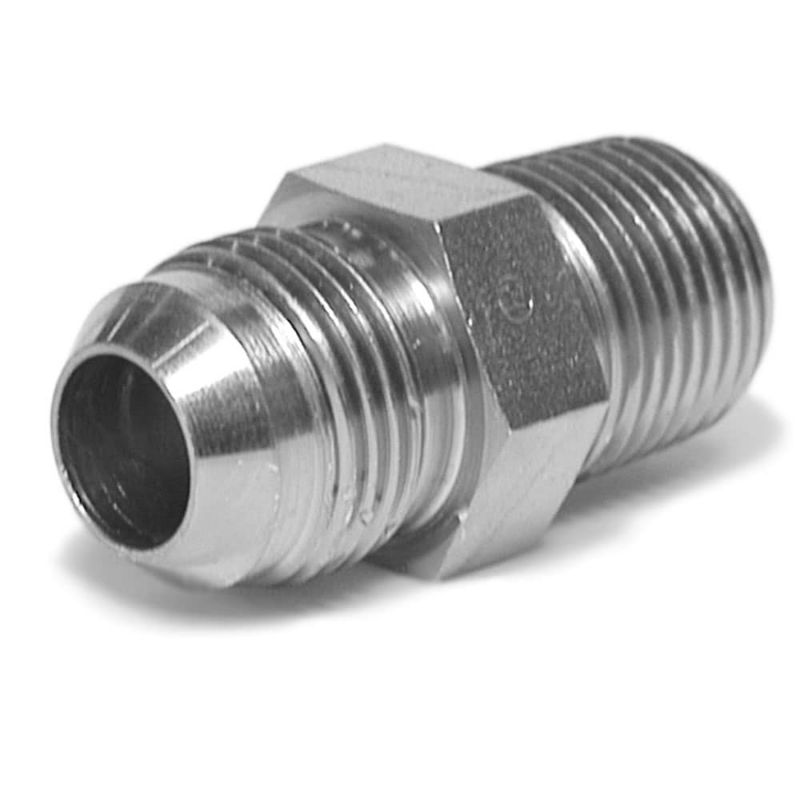

Parker 8-8FMTXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 8-8FMTXS

$9.69/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	1/2 inch	Connection 1 Size	Male 37° Flare
Body Material	Steel	Connection 2 Size	Male NPT/NPTF
O-Ring Material	na	Connection Type	Tube to NPTF with Metric Hex
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na
Connection 2 Tube Outside Diameter	na	Connection 2 Thread Size	1/2-14 inch
Shape	Straight	Connection 4 Size	na
Specifications Met	SAE J514	Connection 3 Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
