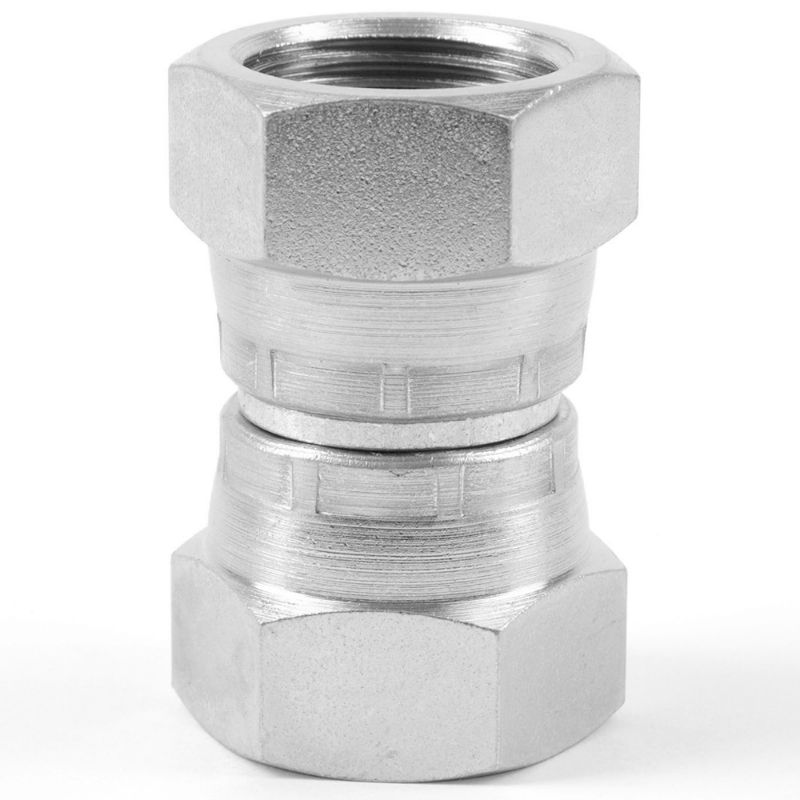

Parker 8-6H6MK4S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	36 In Stock

Brand Parker

Part No. 8-6H6MK4S

$60.27

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	2900 psi	Fitting Type	Swivel Adapter
Connection 4 Thread Size	na	Connection 4 Size	na
Body Material	Steel	Connection 3 Style	na
Connection 2 Thread Size (inch)	3/8-19	Body Material	Steel
Length (inch)	na	Connection 1 Thread Size (inch)	1/2-14
Connection 1 Style	Female BSPP Swivel	O-Ring Material	na
Shape	Straight	Connection 2 Style	Female BSPP Swivel
Connection 2 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
Connection 1 Thread Size (mm)	na	Connection Style	BSPP TO BSPP Swivel

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
