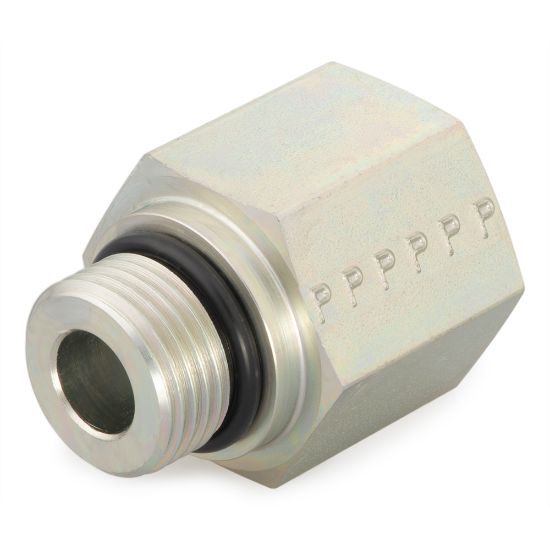

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 8-6 F5OG5-SS - Pipe Fittings and Port Adapters

Name: Parker 8-6 F5OG5-SS - Pipe Fittings and Port Adapters
SKU: 8-6 F5OG5-SS
Price: 247.94 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

AFP Availability:

6 In Stock

North Chesterfield, VA

Partner Available:

15 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 8-6 F5OG5-SS

$247.94/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Fitting Type	Port Adapter
Body Material	Stainless Steel	Connection 4 Thread Size	na
Dimensional Weight	0.07913669064748201 lb	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Connection 4 Size	na
Connection 1 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
O-Ring Material	90 Durometer Nitrile	Connection 3 Style	na
Connection 1 Style	Male SAE-ORB	Connection 2 Thread Size (inch)	9/16-18
Connection 2 Thread Size (mm)	na	Connection 1 Thread Size (inch)	3/4-16
Length (inch)	na	Body Material	Stainless Steel
Shape	Straight	Connection Style	SAE-ORB to SAE-ORB
Connection 2 Style	Female SAE-ORB
