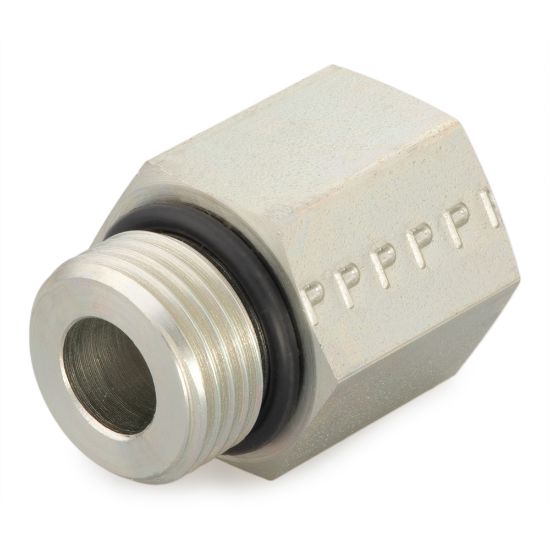

Parker 8-3/8F5OHG4S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. 8-3/8F5OHG4S

$41.30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Thread Size	na
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Fitting Type	Pipe Adapter	Division	Tube Fittings Division
Body Material	Steel	Length (inch)	na
Connection 1 Thread Size (inch)	3/4-16	Connection 2 Style	Female BSPP
Connection 3 Style	na	Shape	Straight
Connection 2 Thread Size (mm)	na	Connection Style	SAE-ORB to BSPP
Connection 3 Thread Size (inch)	na	Connection 1 Thread Size (mm)	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Style	Male SAE-ORB
Connection 2 Thread Size (inch)	3/8-19	Body Material	Steel

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
