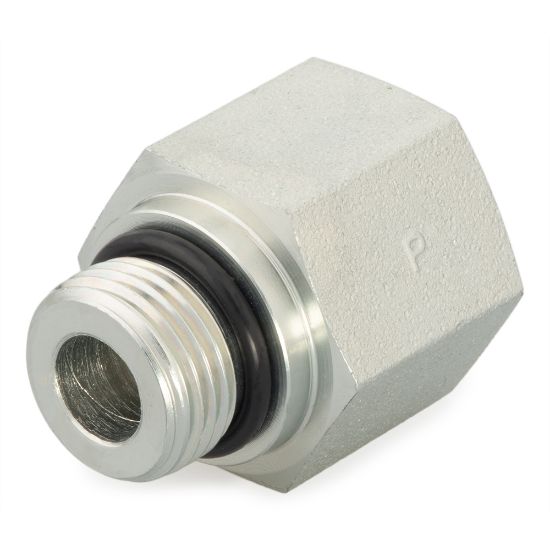

Parker 8-3/8 F5OG-SS - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

AFP Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. 8-3/8 F5OG-SS

$91.29/each

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.07913669064748201 lb
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Connection 4 Thread Size	na	Body Material	Stainless Steel
Fitting Type	Port Adapter	Division	Tube Fittings Division
Connection 2 Style	Female NPT/NPTF	Body Material	Stainless Steel
Connection 2 Thread Size (inch)	3/8-18	Connection 1 Thread Size (inch)	3/4-16
Length (inch)	na	Connection 3 Style	na
Connection Style	SAE-ORB to NPT/NPTF	O-Ring Material	90 Durometer Nitrile
Connection 2 Thread Size (mm)	na	Connection 1 Thread Size (mm)	na
Connection 3 Thread Size (inch)	na	Shape	Straight
Connection 1 Style	Male SAE-ORB
