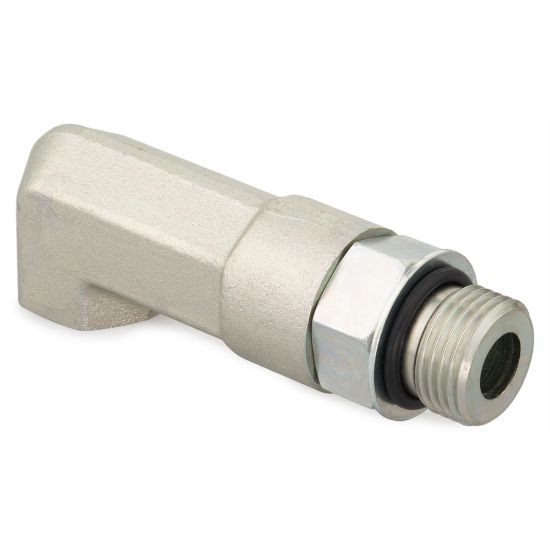

Parker 8-3/8 AOE4G-S FKM - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8-3/8 AOE4G-S FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 4 Thread Size	na	Connection 4 Size	na
Division	Tube Fittings Division	Maximum Dynamic Pressure	4500 psi
Fitting Type	Port Adapter	Body Material	Steel
Connection 2 Thread Size (mm)	na	Connection Style	SAE-ORB Long to NPT/NPTF
O-Ring Material	90 Durometer Fluorocarbon	Connection 3 Thread Size (inch)	na
Shape	90° Elbow	Connection 1 Thread Size (mm)	na
Connection 3 Style	na	Connection 1 Style	Male SAE-ORB
Body Material	Steel	Length (inch)	na
Connection 1 Thread Size (inch)	3/4-16	Connection 2 Style	Female NPT/NPTF
Connection 2 Thread Size (inch)	3/8-18
