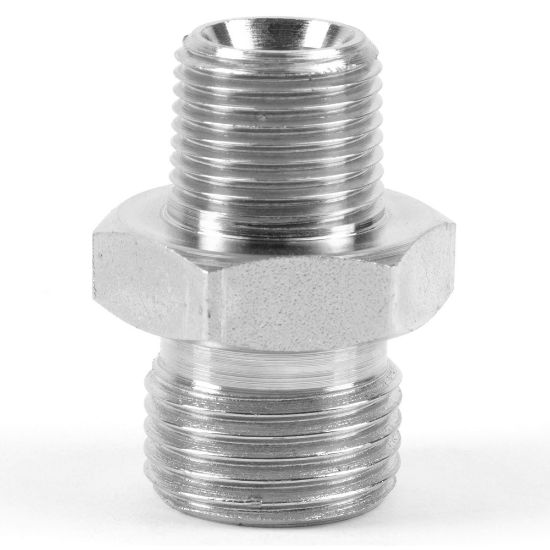

Parker 8-12FMK4S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. 8-12FMK4S

$62.14

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Fitting Type	Pipe Fitting
Connection 4 Thread Size	na	Maximum Dynamic Pressure	2900 psi
Connection 4 Size	na	Division	Tube Fittings Division
Body Material	Steel	Connection 2 Thread Size (mm)	na
Connection 1 Thread Size (inch)	1/2-14	Length (inch)	na
Connection 1 Thread Size (mm)	na	Connection 1 Style	Male BSPP
Shape	Straight	O-Ring Material	na
Connection 2 Style	Male NPT/NPTF	Connection 2 Thread Size (inch)	3/4-14
Body Material	Steel	Connection 3 Thread Size (inch)	na
Connection 3 Style	na	Connection Style	BSPP to NPT/NPTF

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
