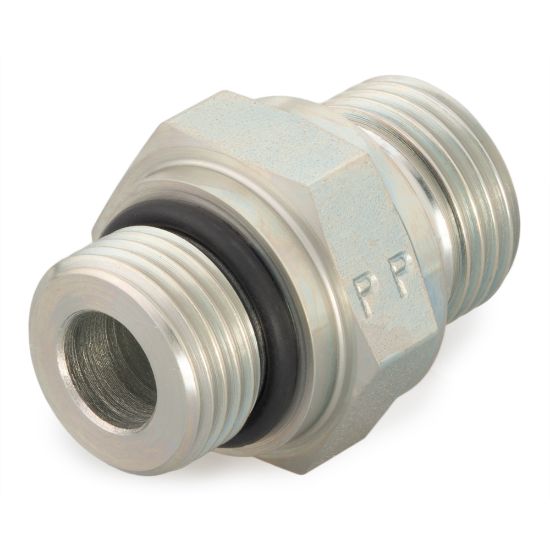

Parker 8-1/2F5OHF42EDS - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8-1/2F5OHF42EDS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Fitting Type	Port Adapter	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Connection 4 Thread Size	na	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Connection 3 Style	na
Connection 1 Thread Size (inch)	3/4-16	Length (inch)	na
Body Material	Steel	Connection 1 Style	Male SAE-ORB
Shape	Straight	Connection 2 Thread Size (inch)	1/2-14
Connection 3 Thread Size (inch)	na	Connection 1 Thread Size (mm)	na
Connection Style	SAE-ORB TO BSPP-ED	Connection 2 Style	Male BSPP-ED
Connection 2 Thread Size (mm)	na

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
