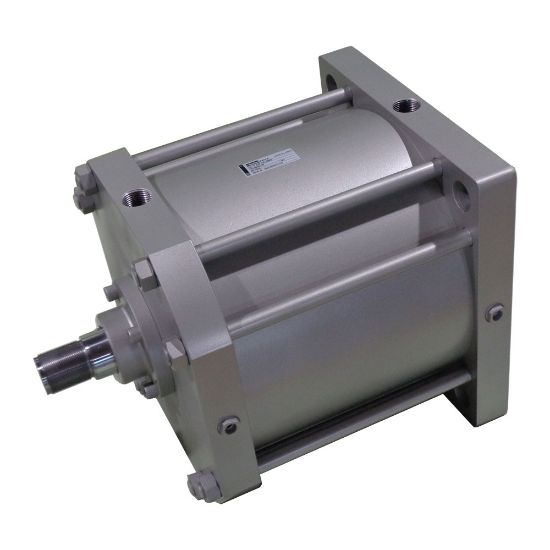

Parker 7AL-3-SKU - Large Pneumatic Cylinder Model:7AL-3

10 bar Large Bore Pneumatic Cylinder 7AL-3 series equipped with wear resistant resin wear ring on the piston. A durable iron body is used, and 4 types of cylinder bore are available: φ280, φ320, φ360, and φ400.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7AL-3-SKU

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	TAIYO Division	Related Parts	Lock nut
Rod End Styles	Rod eye(T-end),Rod clevis(Y-end)with pin	Screw Tolerance	JIS 6g/6H
Fluid Type	Air	Cushioning Type	With cushions on both ends
Bellows Material	Standard：Nylon tarpaulin Semi-standard：Chloroprene,Conex	Pressure Range (MPa)	0.1-1.0
Temperature Range (C)	-10-+70(No freezing)	Lubrication	Necessary(JIS K 2213 Class 1(additive-free turbine oil ISO VG32) or its equivalent)
Speed Range	1.6mm/s	Mounting Style	LB,FA,FB,CA,TC
Bore Diameter (mm)	280, 320, 360, 400	Proof Pressure (MPa)	50-700
Cushioning Stroke (mm)	25(φ280-320, Cushion ring length) , 30 (Cushion ring length, φ360-400)	Stroke Length Tolerance (mm)	0-+0.8(0-100), 0-+1.0(101-250), 0-+1.25(251-630), 0-+1.4(63-1000), 0-+1.6(1001-1600), 0-+1.8(1601-2000)
