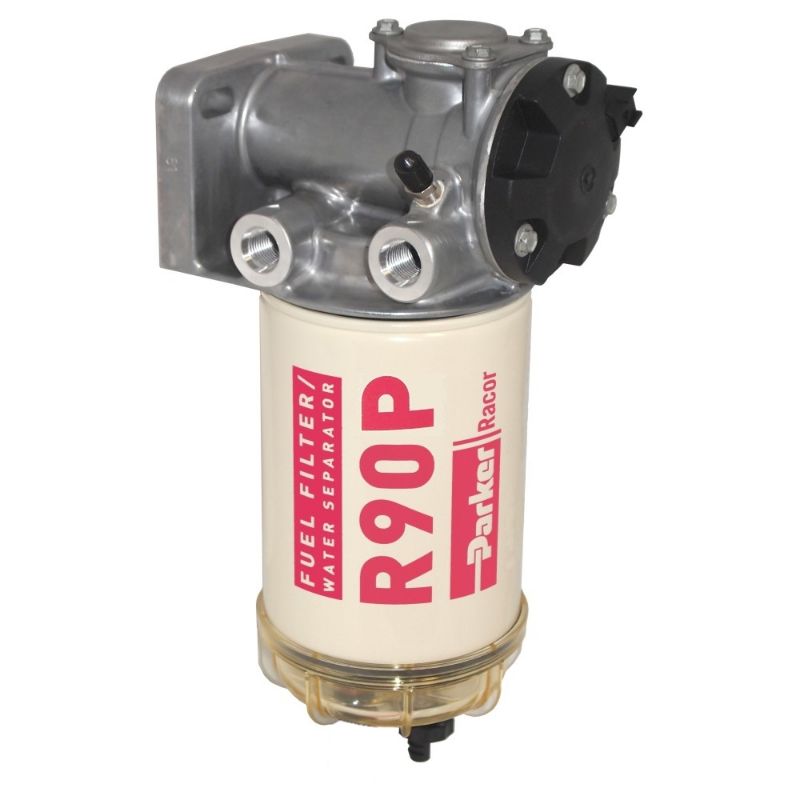

Parker 790R3024 - Fuel Filter Water Separator with Integrated Priming Pump – Racor 700 Series

The Racor 700 Series Fuel Filter Water Separator is a two-stage filtration system designed for use in diesel engine applications. Its integrated fuel pump allows for easy system priming and eliminates messy filter pre-filling and engine hard starting.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 790R3024

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Bowl Type	Clear Engineering Plastic	For Fluid Type	Diesel
Application	Electric Priming	Depth	6.5
Width	4.3	Port Size	7/8"-14
Mounting Type	Head Bracket	Product Series	Cartridge FF/WS Pump
Clean Pressure Drop	0.25	Water Sensor Option	Included
Optional Accessories	See Product Overview & Support Tabs	Height	12.8
Pump Type	63 gph (240 lph)	Compatible Element	R90P
Micron Rating	98% @ 30 microns	Flow Rate	90 gph / 340 lph
Pump Type	12/24V DC Brushless
