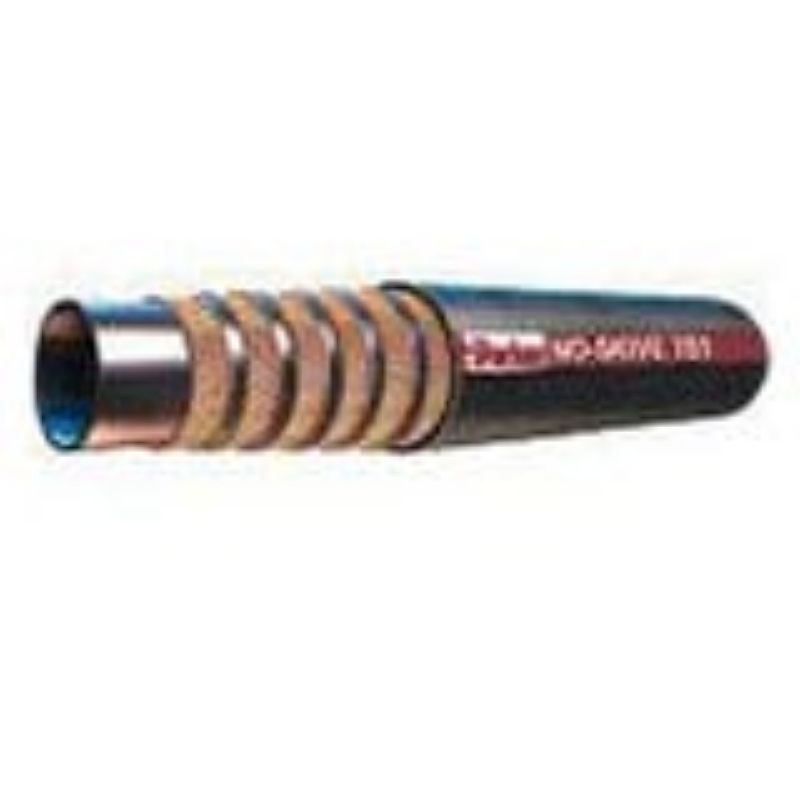

Parker 781-12 - OBSOLETE: Hydraulic Constant Working Pressure Hose 5000 PSI – 781 Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:	Quote Required
Partner Available:	281 In Stock

Brand Parker

Part No. 781-12

$39.51/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	3/4 inch
Outside Diameter	1.260 inch	Maximum Operating Pressure	5000 psi
Weight	1.07 lb/ft	Division	Hose Products Division
Maximum Operating Temperature	257 °F	Hose Inner Tube Material	Synthetic Rubber
Compatible Fitting	78 Series	Media	Petroleum Hydraulic Fluids
Nominal Hose Inside Diameter	19 mm	Hose Reinforcement Material	4 or 6 Spirals of Steel Wire
Cover Material	Synthetic Rubber	Specifications Met	SAE 100R13
Minimum Bend Radius	240 mm	Minimum Operating Temperature	-40 °C
Application	Lubricating Oils	Hose I.D. (size)	-12
