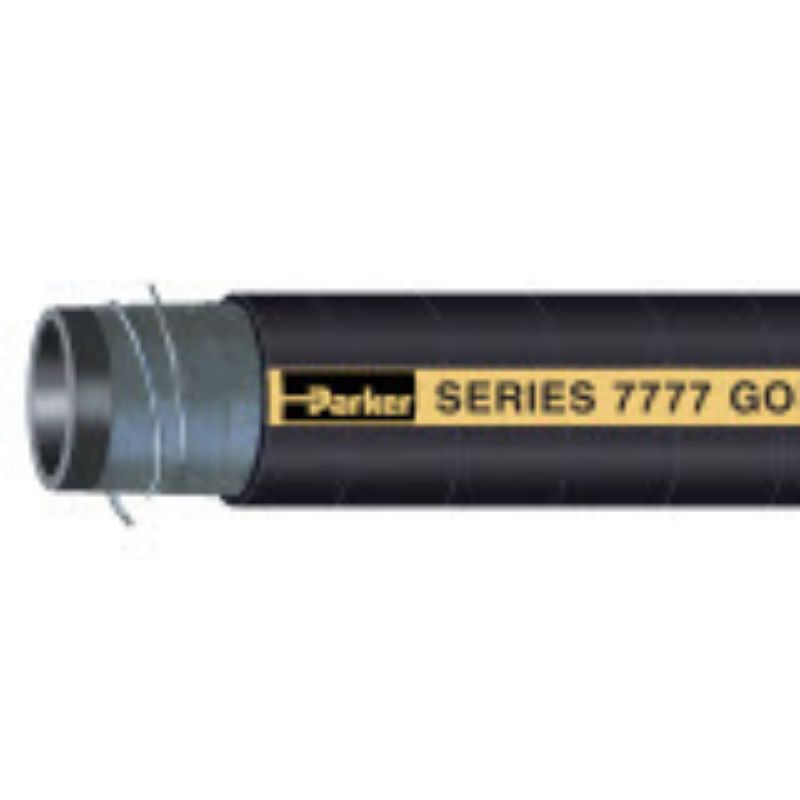

Parker 7777-4000 - GOLD LABEL® Jac-Riser Aircraft Fueling Suction Hose, Series 7777

This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7777-4000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Design Factor	4:1	Maximum Operating Pressure	300 psi
Package Type	Coil	Cover Color	Black
Maximum Operating Temperature	180 °F	Hose Inner Tube Material	Nitrile
Inside Diameter	4 inch	Cover Structure	Wrapped
Application	Fuel Transfer	Minimum Bend Radius	16 inch
Vacuum Pressure Rating	29 Inch-Hg	Hose Reinforcement Material	4 Plies of Textile with Dual Wire Helix
Cover Material	Conductive	Media	Fuels (Jet fuel) Check fuel type with our catalogue chart.
Weight	6.62 kg/m	Outside Diameter	4.980 inch
Specifications Met	NFPA	Maximum Length	200 ft
Hose I.D. (inch)	4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
