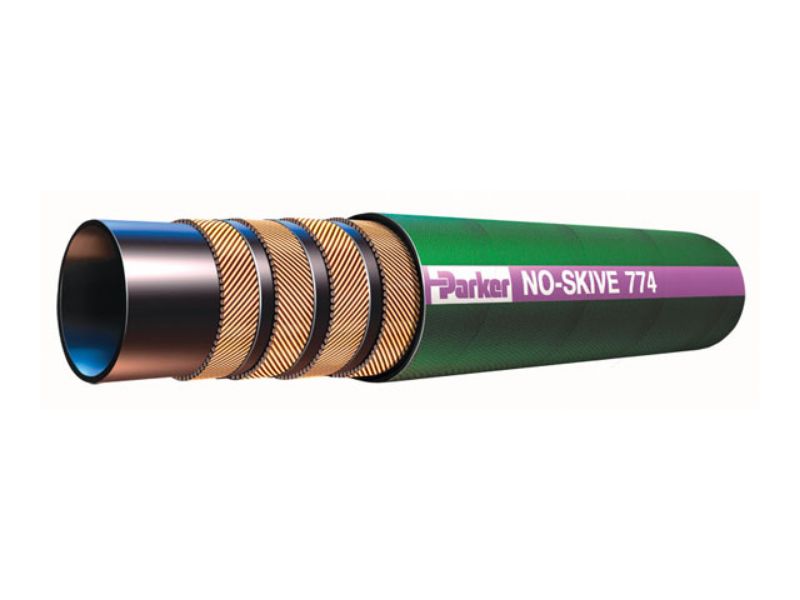

Parker 774-16 - Phosphate-Ester Hose 2500-4000 PSI - 774 Hose

Parker's 774 hose is a phosphate-ester compatible hose that has a pressure range of 2500-4000 PSI and is specifically designed to resist aggressive airline hydraulic fluids.

AFP Availability:	Quote Required
Partner Available:	371 In Stock

Brand Parker

Part No. 774-16

$55.24/each

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Application	Phosphate Ester
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Maximum Operating Pressure	28 MPa
Weight	1.34 lb/ft	Hose Reinforcement Material	4 Spirals of Steel Wire
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Nominal Hose Inside Diameter	25 mm
Specifications Met	n/a	Minimum Bend Radius	12 inch
Cover Color	Green	Inside Diameter	1 inch
Outside Diameter	38 mm	Compatible Fitting	71 Series
Media	Petroleum Hydraulic Fluids	Division	Hose Products Division
Maximum Operating Temperature	80 °C	Hose I.D. (size)	-16
Pkg Qty	140	Pkg Qty/UOM	140 FT
Working Pressure	4000 PSI (280 bar)	UOM	FT
Material	Rubber	Inner Diameter	1 Inch
Series	774	Parker Group	Fluid Connector
Hose Pressure Range	High	Parker Division	Hose Products
Material	Rubber	Working Pressure Range	4000 to 4999 PSI (276 to 345 bar)
Application	Hydraulic Phosphate Ester	Inner Diameter Inch/mm	Inch
Inner Diameter	1 Inch	Inch/Metric	Inch
Hose Category	Hydraulic – Phosphate-Ester
