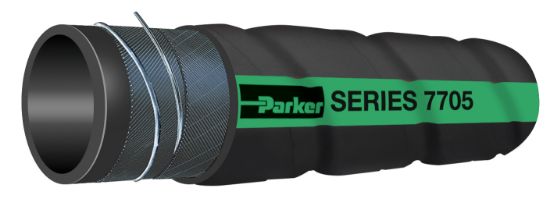

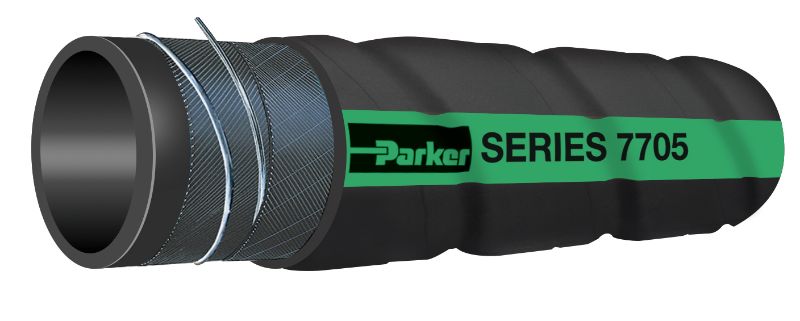

Parker 7705-2000 - GREEN LABEL™ Corrugated Petroleum Transport Suction Hose, Series 7705

Green Label Corrugated Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of biodiesel, oil and refined fuels in applications to 180°F and 200 psi, Series 7705

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7705-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Specifications Met	N/A	Package Type	Coil
Length per Package	100 ft	Minimum Bend Radius	4 inch
Cover Color	Black	Maximum Operating Pressure	200 psi
Inside Diameter	2 inch	Media	Lubricants (Oils)
Compatible Fitting	43 Series	Weight	1 lb/ft
Hose Inner Tube Material	Nitrile	Maximum Operating Temperature	82 °C
Minimum Operating Temperature	-20 °F	Application	Petroleum Transfer
Cover Material	Nitrile/PVC	Vacuum Pressure Rating	Full
Cover Structure	Corrugated	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Outside Diameter	2.440 inch	Hose I.D. (inch)	2
Maximum Working Pressure (psi)	200

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
