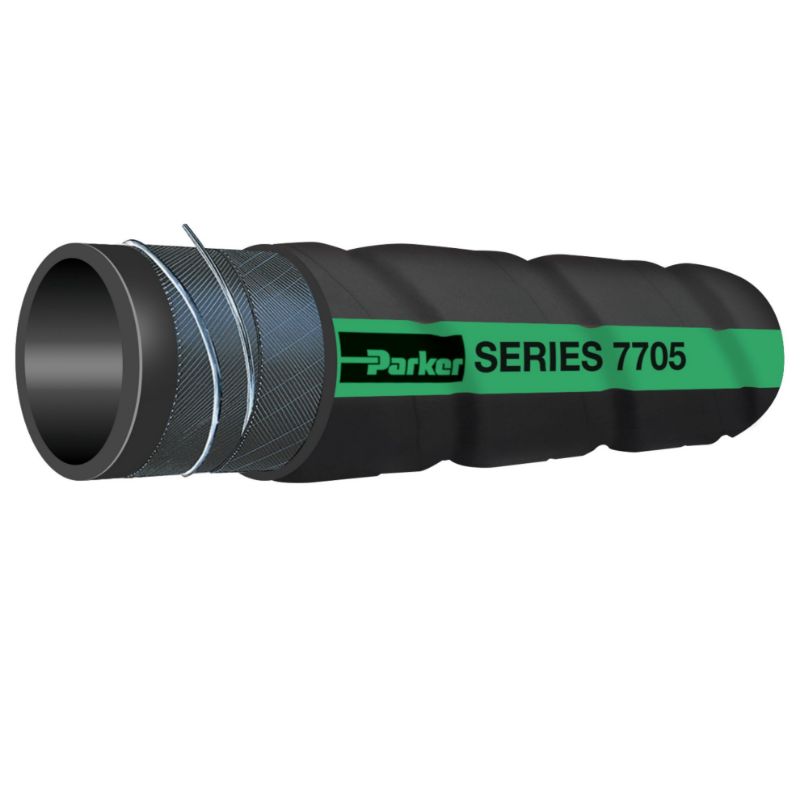

Parker 7705-1500 - GREEN LABEL™ Corrugated Petroleum Transport Suction Hose, Series 7705

Green Label Corrugated Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of biodiesel, oil and refined fuels in applications to 180°F and 200 psi, Series 7705

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7705-1500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Bend Radius	3 inch
Design Factor	4:1	Specifications Met	N/A
Package Type	Coil	Length per Package	100 ft
Outside Diameter	50 mm	Cover Color	Black
Maximum Operating Temperature	180 °F	Maximum Operating Pressure	200 psi
Hose Inner Tube Material	Black	Compatible Fitting	43 Series
Inside Diameter	38.1 mm	Weight	0.83 lb/ft
Application	Petroleum Transfer	Cover Material	Nitrile/PVC
Minimum Operating Temperature	-29 °C	Vacuum Pressure Rating	Full
Cover Structure	Corrugated	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Media	Fuels (Biodiesel (to B100 in dedicated service)	Hose I.D. (inch)	1-1/2
Maximum Working Pressure (psi)	200
