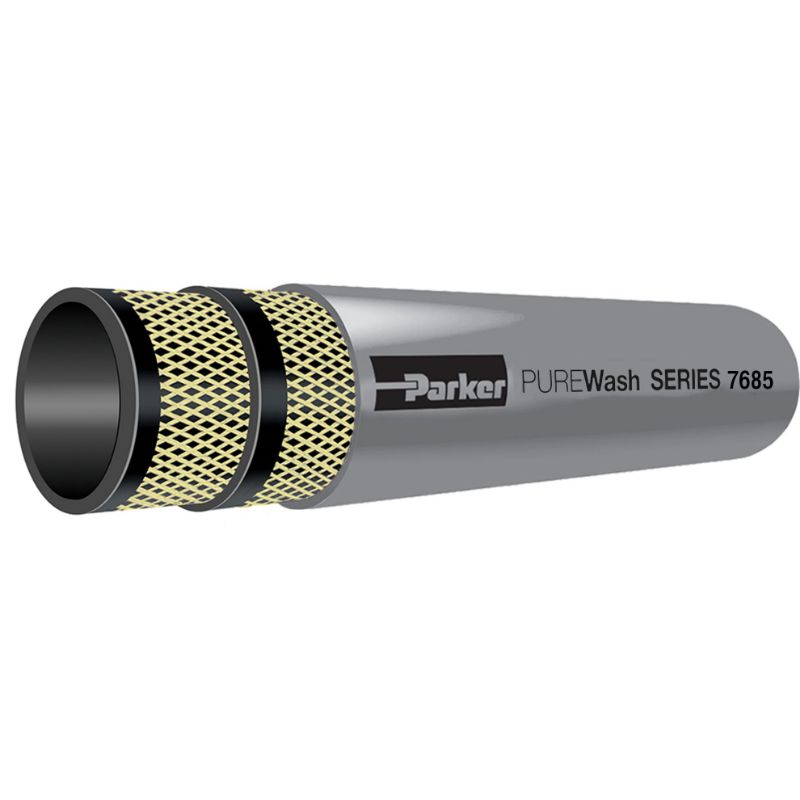

Parker 7685-6-GRA-RL - PUREWash Hose Series 7685

PUREWash Series 7685 is a high pressure washdown hose that can be used in virtually every type of food and beverage processing plant and in general industrial applications.

AFP Availability:	Quote Required
Partner Available:	500 In Stock

Brand Parker

Part No. 7685-6-GRA-RL

$5.22/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	0.375 inch
Outside Diameter	19.4 mm	Cover Structure	Smooth
Maximum Operating Pressure	1500 psi	Weight	0.31 kg/ft
Maximum Operating Temperature	250 °F	Division	Hose Products Division
Cover Color	Gray	Compatible Fitting	HY Series
Hose Inner Tube Material	Black	Media	Water
Hose Reinforcement Material	4 Plies of Aramid	Specifications Met	n/a
Minimum Bend Radius	102 mm	Application	Equipment Sanitation
Minimum Operating Temperature	-40 °C	Hose I.D. (mm)	9.5
Cover Color	Gray	Application	Equiment Sanitation, Preventative Maintenance
Minimum Working Temperature (C)	-40	Minimum Working Temperature (F)	-40
Hose O.D. (mm)	19.43	Hose I.D. (inch)	0.375
Hose O.D. (inch)	0.765	Standard Package Quantity	500 ft reel
Maximum Working Temperature (C)	121	Maximum Working Temperature (F)	250

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
