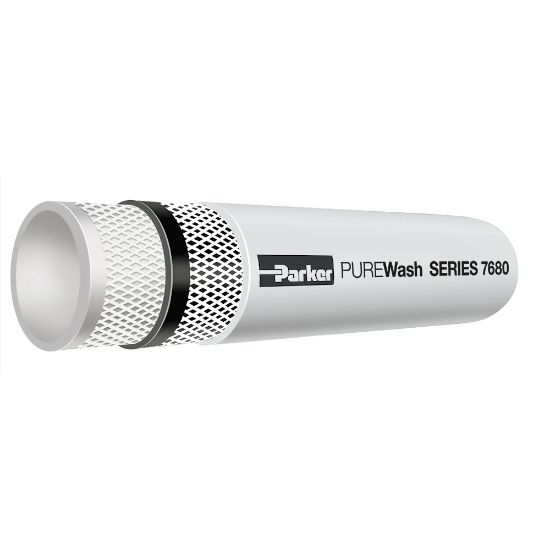

Parker 7680-12-WHT-RL - PUREWash Hose Series 7680

PUREWash Series 7680 hose can be used in virtually every type of food and beverage processing plant. The tube is FDA compliant (not to be used in food transfer) and the cover is non-marking and also available in blue for a cleaner look.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7680-12-WHT-RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Specifications Met	N/A	Maximum Operating Temperature	100 °C
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Bend Radius	152 mm
Cover Color	Blue	Inside Diameter	19.1 mm
Weight	0.37 lb/ft	Compatible Fitting	HY Series
Outside Diameter	1.156 inch	Maximum Operating Pressure	20.7 bar
Application	Food Transfer	Media	Food & Beverage (Food & Beverage Processing Plants)
Hose Inner Tube Material	Smooth	Hose Reinforcement Material	4 Plies
Hose I.D. (inch)	0.75	Hose O.D. (inch)	1.156
Application	Equiment Sanitation, Preventative Maintenance	Cover Color	White
Hose I.D. (mm)	19.1	Hose O.D. (mm)	29.4
Standard Package Quantity	400 ft reel	Maximum Working Temperature (C)	100
Maximum Working Temperature (F)	212	Minimum Working Temperature (C)	-40
Minimum Working Temperature (F)	-40

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
