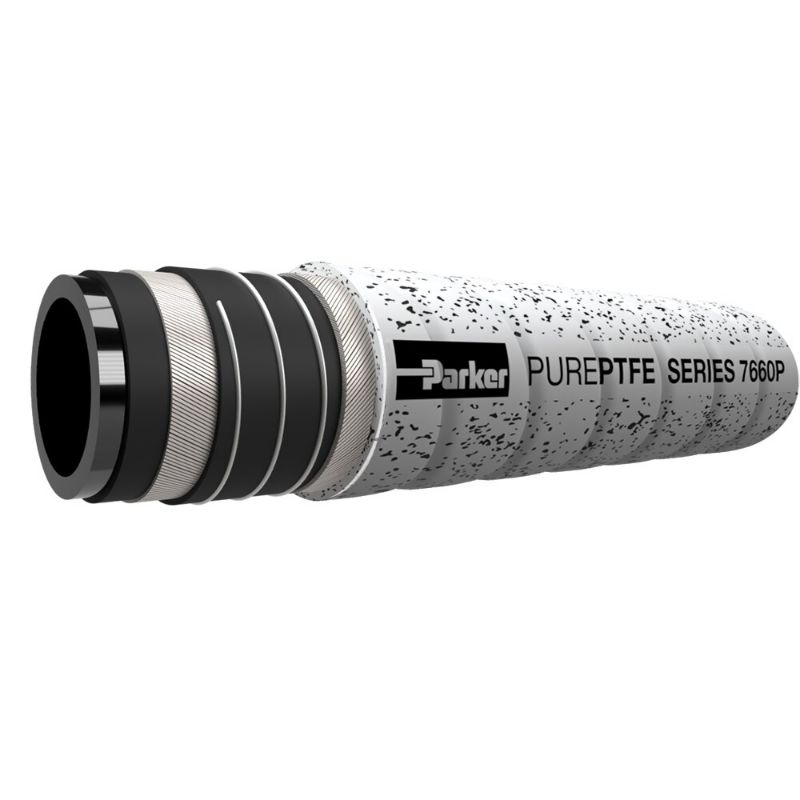

Parker 7660P-2000 - PUREPTFE Hose Series 7660P

Note: This product is no longer available - please contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7660P-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	302 °F
Minimum Operating Temperature	-40 °F	Media	Pharmaceutical Fluids (Cosmetics)
Application	Pharmaceutical	Inside Diameter	50 mm
Maximum Operating Pressure	10 bar	Hose Inner Tube Material	Black
Outside Diameter	64 mm	Cover Color	White
Weight	1.23 lb/ft	Specifications Met	EX
Cover Material	Low Friction Material	Minimum Bend Radius	9.84 inch
Minimum Burst Pressure	40 bar	Vacuum Pressure Rating	26.5 Inch-Hg
Hose Reinforcement Material	Synthetic Plies	Hose I.D. (inch)	2
Hose O.D. (inch)	2.6	Meets Industry Specifications	FDA,CE, 3A,USP,ISO,REACH,GMP
Application	Chemical, Pharmaceutical, Cosmetics Transfer
