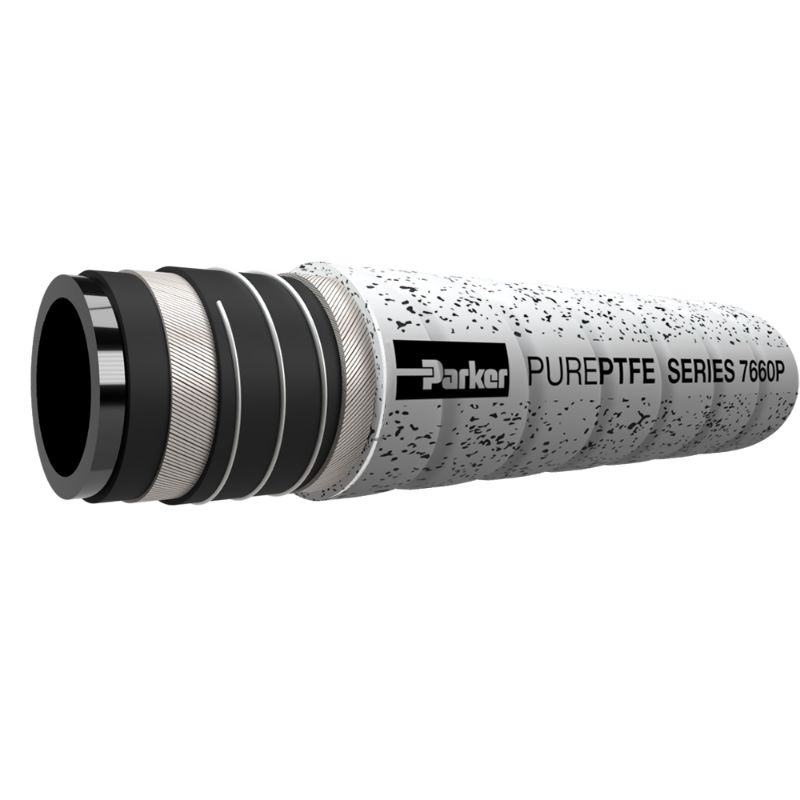

Parker 7660P-1500 - PUREPTFE Hose Series 7660P

Note: This product is no longer available - please contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7660P-1500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	302 °F
Minimum Operating Temperature	-40 °C	Media	Chemicals
Minimum Burst Pressure	600 psi	Maximum Operating Pressure	150 psi
Hose Inner Tube Material	Black	Inside Diameter	38 mm
Minimum Bend Radius	190 mm	Cover Color	White
Weight	1.24 kg/m	Application	Cosmetics
Specifications Met	USP	Cover Material	Low Friction Material
Outside Diameter	51 mm	Vacuum Pressure Rating	90 kPa
Hose Reinforcement Material	Stainless Steel Wire Helix	Hose I.D. (inch)	1.5
Hose O.D. (inch)	2	Meets Industry Specifications	FDA,CE, 3A,USP,ISO,REACH,GMP
Application	Chemical, Pharmaceutical, Cosmetics Transfer
