Sorry - this product is no longer available

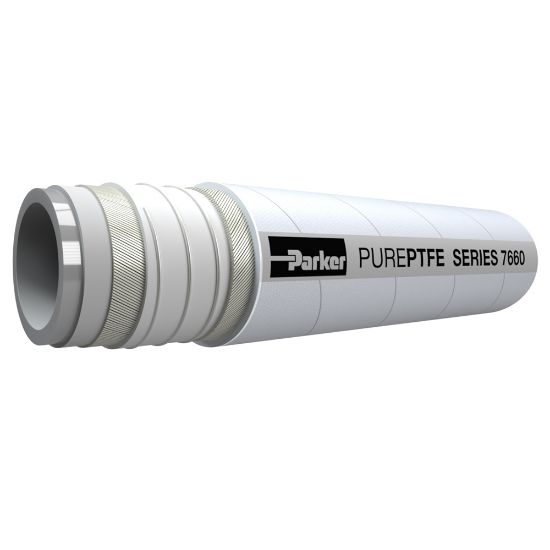

Parker 7660-0500 - PURESPTFE Hose Series 7660

Note: This product is no longer available - please contact us for further assistance

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7660-0500

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	302 °F
Minimum Operating Temperature	-40 °C	Media	Pharmaceutical Fluids (Cosmetics)
Application	Chemical Transfer	Inside Diameter	13 mm
Hose Inner Tube Material	Clear	Outside Diameter	25 mm
Minimum Burst Pressure	1000 psi	Maximum Operating Pressure	250 psi
Cover Structure	Smooth	Cover Color	White
Specifications Met	GMP	Weight	0.5 kg/m
Minimum Bend Radius	2.95 inch	Vacuum Pressure Rating	26.5 Inch-Hg
Hose Reinforcement Material	Stainless Steel Wire Helix	Hose I.D. (inch)	0.5
Hose O.D. (inch)	1	Meets Industry Specifications	FDA,CE, 3A,USP,ISO,REACH,GMP
Application	Chemical Transfer
