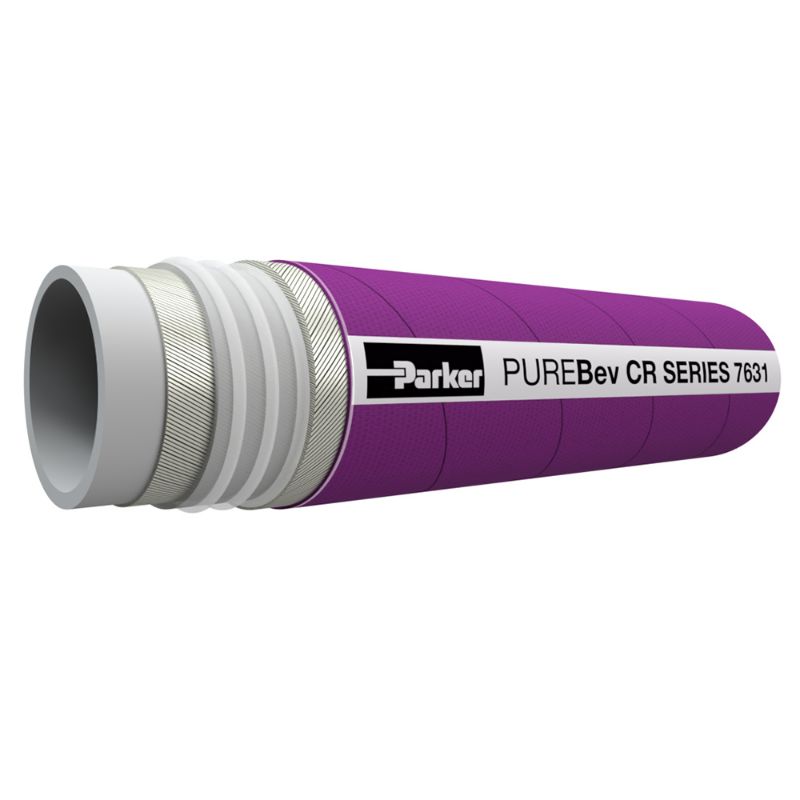

Parker 7631-1000 - PUREBev Hose Series 7631

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7631-1000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Media	Food & Beverage (Wine)	Inside Diameter	25 mm
Maximum Operating Temperature	120 °C	Maximum Operating Pressure	150 psi
Cover Structure	Smooth	Application	Beverage (Wine)
Specifications Met	GMP	Weight	0.87 kg/m
Outside Diameter	39 mm	Minimum Bend Radius	4.33 inch
Minimum Burst Pressure	450 psi	Vacuum Pressure Rating	20.4 inch-Hg
Hose Inner Tube Material	Butyl	Hose Reinforcement Material	Monofilament Helix
Hose I.D. (inch)	1	Hose O.D. (inch)	1.5
Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP	Application	Beverage Transfer
