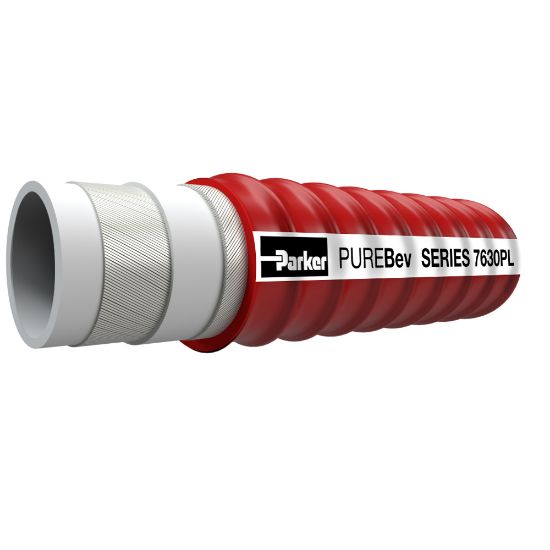

Parker 7630PL-2000 - PUREBev Hose Series 7630PL

PUREBev Series 7630PL featuring our PLUS cover confirms exceptional quality. This extra flexible, light weight delivery and suction hose is designed for non-fatty food products including beer and wine. Tube consist of premium Butyl and UHMWPE materials.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7630PL-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Media	Food & Beverage (Wine)
Minimum Bend Radius	100 mm	Maximum Operating Pressure	150 psi
Minimum Burst Pressure	30 bar	Weight	1.24 lb/ft
Inside Diameter	51 mm	Application	Beverage
Specifications Met	GMP	Maximum Operating Temperature	248 °F
Minimum Operating Temperature	-25 °C	Cover Material	Rubber (red outer thermoplastic helix nested within the rubber cover)
Cover Structure	Deeply Corrugated	Vacuum Pressure Rating	90 kPa
Hose Inner Tube Material	Phtalates Free	Hose Reinforcement Material	Thermoplastic Wire Helix
Cover Color	Red (red outer thermoplastic helix nested within the rubber cover)	Hose I.D. (inch)	2
Vacuum Rating (inch of Hg)	26.5
