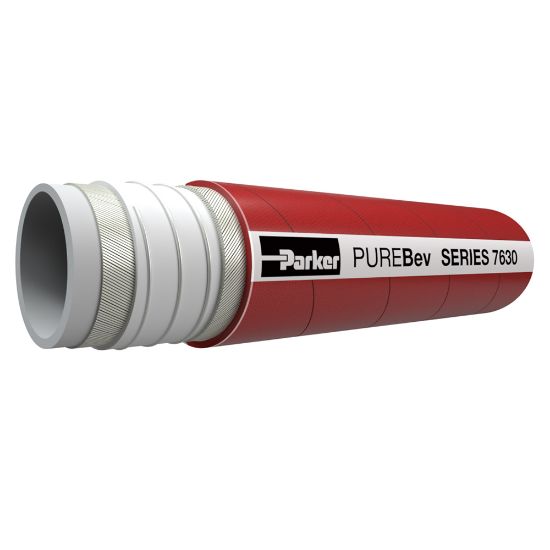

Parker 7630-3000 - PUREBev Hose Series 7630

PUREBev Series 7630 is a flexible delivery and suction hose designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7630-3000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	250 psi	Cover Structure	Smooth
Hose Inner Tube Material	White	Inside Diameter	76 mm
Outside Diameter	94.0 mm	Application	Beverage (Wine)
Specifications Met	3A	Maximum Operating Temperature	248 °F
Media	Food & Beverage (Alcohol/Spirits [concentration up to 96%])	Weight	2.63 lb/ft
Minimum Bend Radius	330 mm	Minimum Burst Pressure	750 psi
Vacuum Pressure Rating	26.5 Inch-Hg	Hose Reinforcement Material	Galvanized Wire Helix
Hose I.D. (inch)	3	Hose O.D. (inch)	3.7
Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP	Application	Beverage Transfer
