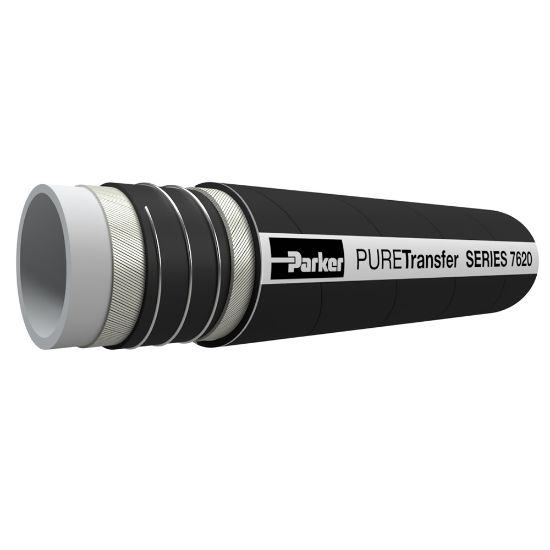

Parker 7620-3000 - PURETransfer Hose Series 7620

PURETransfer Series 7620 is a high quality, flexible delivery and suction hose. This series is designed to convey dry abrasives. The white anitstatic tube material consists of premium nitrile (NBR).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7620-3000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	80 °C
Maximum Operating Pressure	90 psi	Cover Structure	Smooth
Inside Diameter	76 mm	Minimum Bend Radius	18 inch
Application	Food Transfer	Specifications Met	GMP
Minimum Operating Temperature	-25 °C	Media	Dry Abrasive Powders
Weight	2.18 lb/ft	Cover Material	Conductive
Outside Diameter	92.0 mm	Minimum Burst Pressure	270 psi
Vacuum Pressure Rating	26.5 Inch-Hg	Hose Inner Tube Material	White Antistatic
Hose Reinforcement Material	Synthetic Plies	Hose I.D. (inch)	3
Hose O.D. (inch)	3.62	Meets Industry Specifications	FDA, BFR, DM, MHLW, REACH
