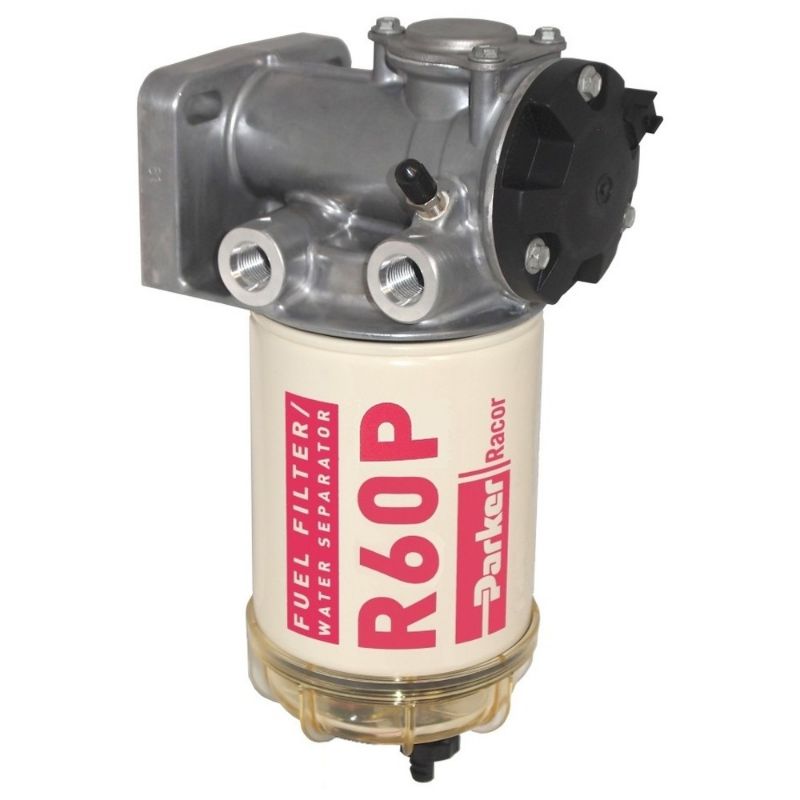

Parker 760R30 - Fuel Filter Water Separator with Integrated Priming Pump – Racor 700 Series

The Racor 700 Series Fuel Filter Water Separator is a two-stage filtration system designed for use in diesel engine applications. Its integrated fuel pump allows for easy system priming and eliminates messy filter pre-filling and engine hard starting.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 760R30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Bowl Type	Clear Engineering Plastic	For Fluid Type	Diesel
Height	11.8	Application	Electric Priming
Depth	6.5	Width	4.3
Port Size	7/8"-14	Pump Type	47 gph (170 lph)
Mounting Type	Head Bracket	Product Series	Cartridge FF/WS Pump
Compatible Element	R60P	Clean Pressure Drop	0.25
Water Sensor Option	Included	Optional Accessories	See Product Overview & Support Tabs
Flow Rate	60 gph / 227 lph	Pump Type	12V DC, Brushed
Micron Rating	98% @ 30 microns
