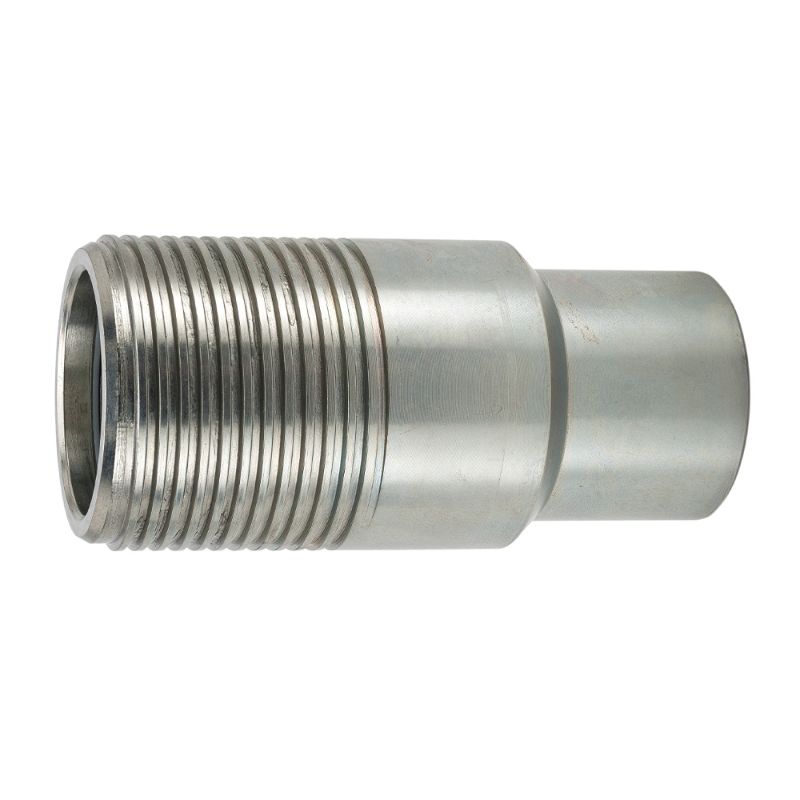

Picture of Parker 75N12-12F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 75N12-12F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.
Availability:
2 Limited Stock
Fayetteville, NC2
Partner Available:8 In Stock
Brand Parker
Part No. 75N12-12F
$142.66
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Operating Temperature250 °F
Body MaterialSteelPlating TypeZinc with clear trivalent chromate
Minimum Operating Temperature-40 °FProduct TypeThread to Connect
Dimensional Weight0.12464028776978417 lbSeal MaterialNitrile
Valve TypePoppetApplicationHigh Pressure Hydraulics
DivisionQuick Coupling DivisionHex Size1.56 inch
Sleeve TypenaMaximum Operating Pressure5000
Connection Thread Size (inch)3/4 - 14Body Size (inch)3/4
Connection TypeFemale NPSFSpecifications Metna
Coupling HalfMale Nipple
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
