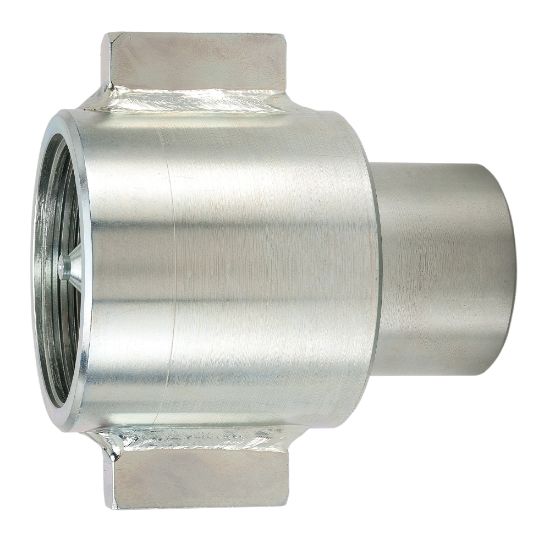

Parker 75C32-32RPW - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 75C32-32RPW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Poppet	Application	Hydraulic high pressure, connect under pressure
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Hex Size	3.0 inch	Maximum Operating Temperature	250 °F
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Seal Material	Nitrile	Product Type	Thread-to-Connect
Connection Thread Size (inch)	2 - 11 1/2	Maximum Operating Pressure	345
Coupling Half	Female Coupler	Body Size (inch)	2
Specifications Met	API 16D	Connection Type	Female BSPP
Sleeve Type	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
