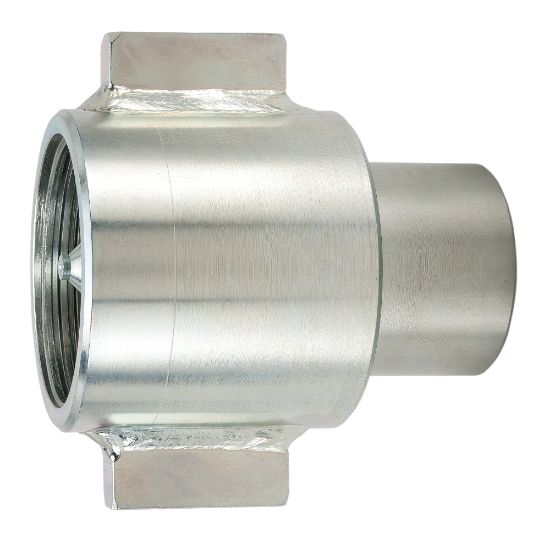

Parker 75C20-20F-DBP - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 75C20-20F-DBP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Poppet	Division	Quick Coupling Division
Application	High Pressure Hydraulics	Seal Material	n/a
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Maximum Operating Temperature	n/a	Product Type	Thread to Connect
Hex Size	n/a inch	Minimum Operating Temperature	n/a
Dimensional Weight	0.6232014388489209 lb	Specifications Met	API 16D
Coupling Half	Female Coupler	Body Size (inch)	1 1/4
Connection Thread Size (inch)	1 1/4 - 11 1/2	Sleeve Type	Wing nut
Connection Type	Female NPTF	Specifications Met	API 16D
Maximum Operating Pressure	5000
