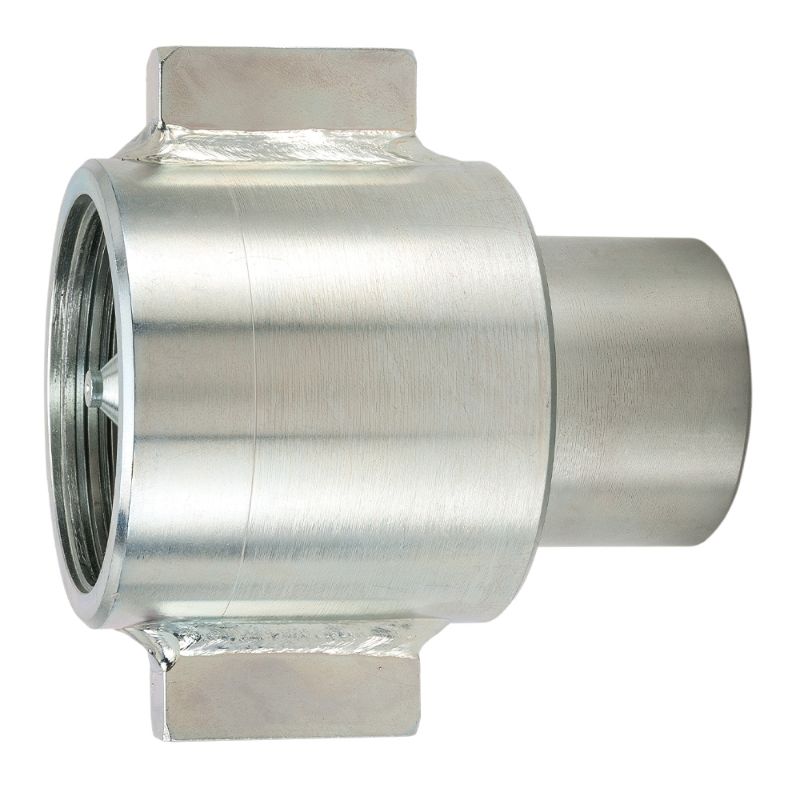

Picture of Parker 75C12-12F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 75C12-12F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.
AFP Availability:
2 Limited Stock
Fayetteville, NC2
Partner Available:1 Limited Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. 75C12-12F
$156.07/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Operating Temperature250 °F
DivisionQuick Coupling DivisionApplicationHigh Pressure Hydraulics
Minimum Operating Temperature-40 °FBody MaterialSteel
Hex Size1.31 inchSeal MaterialNitrile
Plating TypeZinc with Clear Trivalent ChromateProduct TypeThread to Connect
Dimensional Weight0.22945143884892086 lbValve TypePoppet
Connection Thread Size (inch)3/4 - 14Sleeve TypeHex nut
Maximum Operating Pressure5000Body Size (inch)3/4
Connection TypeFemale NPSFCoupling HalfFemale Coupler
