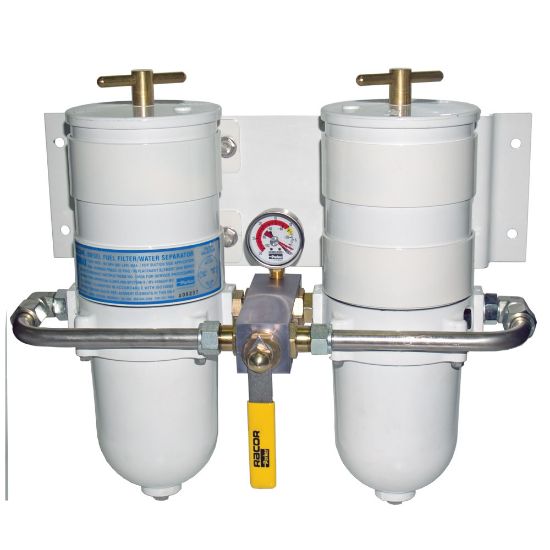

Parker 75900MAXM10 - Marine Fuel Filter Water Separator – Racor Turbine Series

The Racor Marine Fuel Filter Water Separator Turbine Series is a UL-approved filtration system that offers maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 75900MAXM10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	7/8"-14 UNF-2A, SAE J514, 37° flare Male	Series or Model Replaced	Replaced by 75900VMAM10
Division	Engine Mobile Original Equipment Division	Catalog Number	See RSL0430
Application	Marine Filtration	Brand	Racor
Flow Rate	180 gph (681 lph)	Product Type	OBSOLETE Marine Turbine Housing
Bowl Type	Bowl: Aluminium Alloy	Micron Rating	98% @ 10 Micron
Location	North America and EMEA regions	Valve Type	4-Way Valve
Part Type	900 Marine Dual Turbine Assembly

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)
