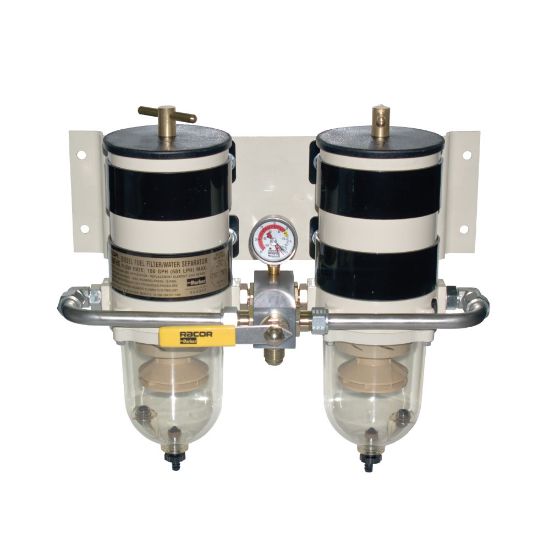

Parker 75900FHX2 - Fuel Filter Water Separator – Racor Turbine Series

The Racor Fuel Filter Water Separator Turbine Series is a three-stage filtration system that provides maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 75900FHX2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Racor	Division	Engine Mobile Original Equipment Division
Valve Type	4-Way Valve	Bowl Type	Clear Engineering Plastic
Connection Type	7/8”-14 UNF-2A Male (SAE J514 37° Flare)	Series or Model Replaced	Replaced by 75900FV10
Catalog Number	See RSL0411	Application	Mobile Filtration
Heater	Not Included	Product Type	OBSOLETE Turbine Housing
Part Type	75900 Dual Turbine Assembly	Micron Rating	98% @ 4 Micron
Location	North America and EMEA regions	Flow Rate	180 gph (681 lph)

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)
