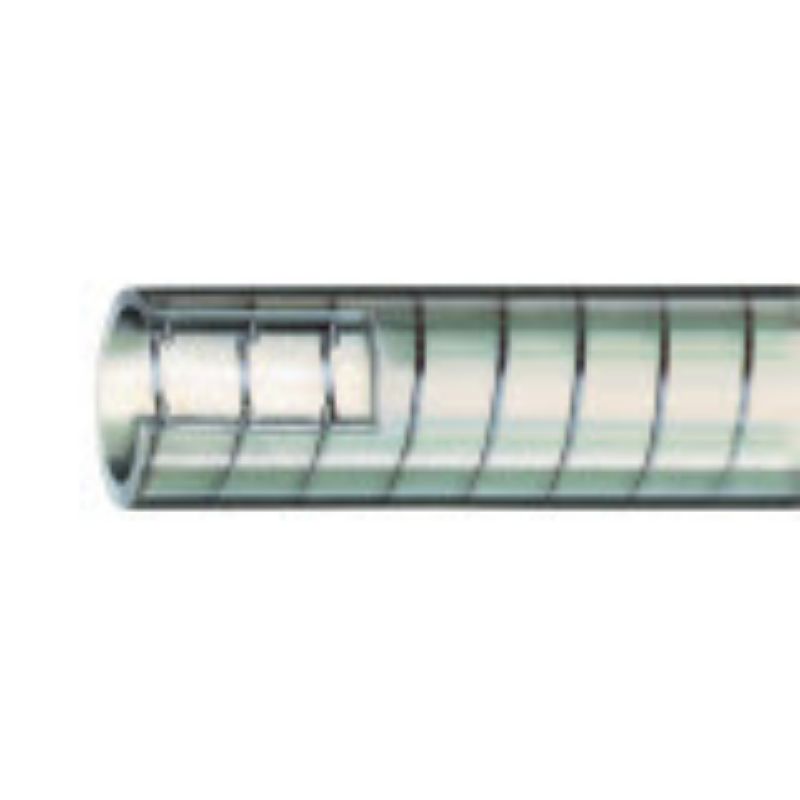

Parker 7570-1500 - DYNAFLEX® PVC Clear Suction Hose, Series 7570

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7570-1500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	FDA	Length per Package	100
Application	PVC Hose	Design Factor	3:1
Hose Inner Tube Material	Clear	Maximum Operating Temperature	140
Package Type	Coil	Division	Hose Products Division
Inside Diameter	1-1/2	Cover Material	PVC
Maximum Operating Pressure	40 to 80	Cover Structure	Smooth
Weight	0.54	Cover Color	Transparent
Hose Reinforcement Material	Wire Helix	Minimum Operating Temperature	14
Minimum Bend Radius	3.5	Vacuum Pressure Rating	27
Outside Diameter	1.850	Media	Air
Maximum Working Pressure (psi)	72	Hose I.D. (inch)	1-1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
