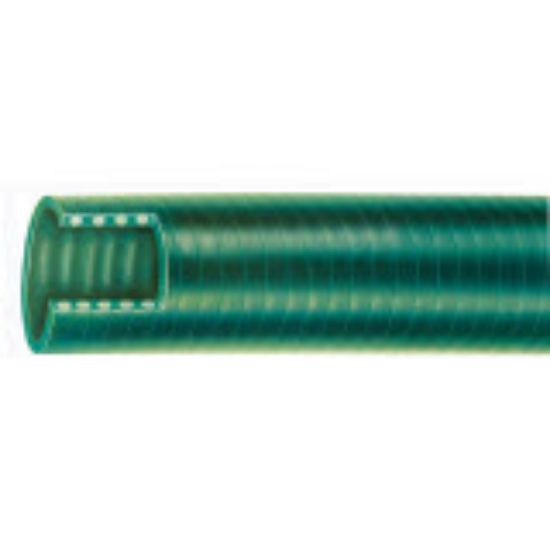

Parker 7560-1500 - DYNAFLEX® PVC Standard Duty Suction Hose, Series 7560

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7560-1500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	140	Division	Hose Products Division
Package Type	Coil	Maximum Operating Pressure	100
Cover Material	PVC	Inside Diameter	1-1/2
Media	Dry Abrasive Powders (Debris)	Vacuum Pressure Rating	22
Cover Structure	Smooth	Minimum Bend Radius	6.7
Application	PVC Hose	Outside Diameter	1.780
Hose Inner Tube Material	Green	Hose Reinforcement Material	PVC Helix
Specifications Met	N/A	Length per Package	100
Minimum Operating Temperature	23	Weight	0.39
Cover Color	Green	Design Factor	3:1
Maximum Working Pressure (psi)	100	Hose I.D. (inch)	1-1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
