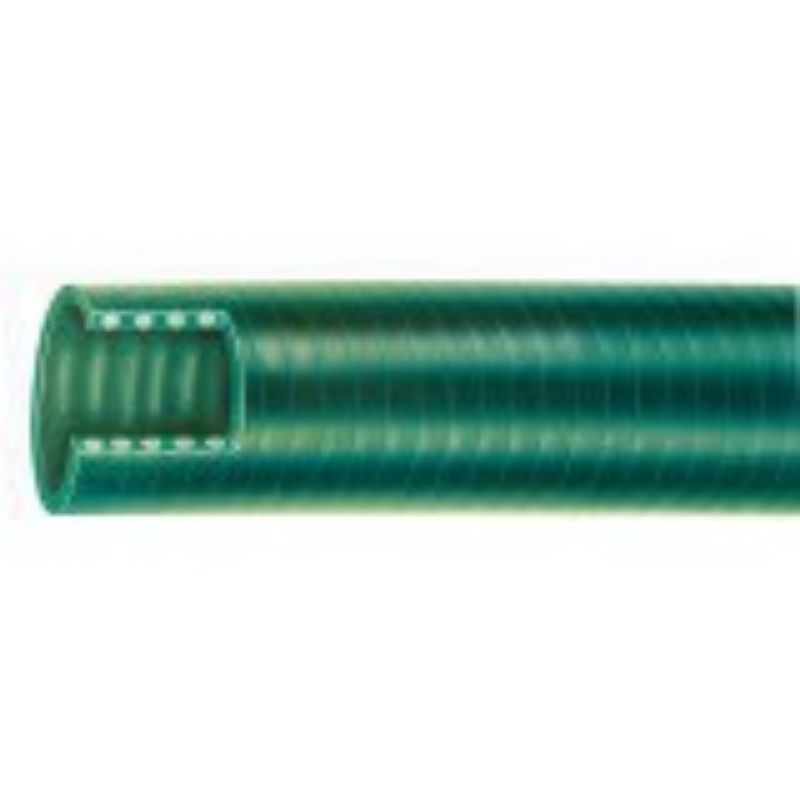

Parker 7560-1250 - DYNAFLEX® PVC Standard Duty Suction Hose, Series 7560

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7560-1250

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	PVC Hose	Design Factor	3:1
Cover Color	Green	Inside Diameter	1-1/4
Vacuum Pressure Rating	22	Minimum Bend Radius	5.7
Cover Material	PVC	Minimum Operating Temperature	23
Length per Package	100	Outside Diameter	1.530
Media	Dry Abrasive Powders (Debris)	Package Type	Coil
Maximum Operating Temperature	140	Division	Hose Products Division
Hose Reinforcement Material	PVC Helix	Specifications Met	N/A
Weight	0.32	Hose Inner Tube Material	Green
Maximum Operating Pressure	120	Cover Structure	Smooth
Hose I.D. (inch)	1-1/4	Maximum Working Pressure (psi)	120

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
