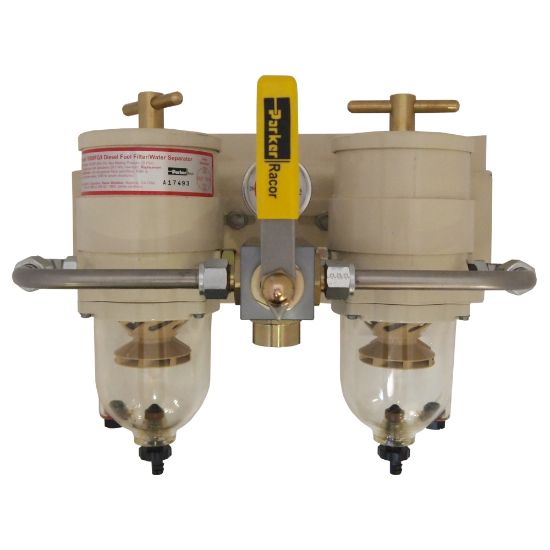

Parker 75500FGX2 - Fuel Filter Water Separator – Racor Turbine Series

The Racor Fuel Filter Water Separator Turbine Series is a three-stage filtration system that provides maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 75500FGX2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Mobile Filtration	Connection Type	3/4”-16 UNF Male (SAE J1926 O-ring Boss)
Brand	Racor	Division	Engine Mobile Original Equipment Division
Valve Type	4-Way Valve	Bowl Type	Clear Engineering Plastic
Catalog Number	See RSL0312	Series or Model Replaced	Active Part
Part Type	500 Dual Turbine Assembly	Heater	Not Included
Product Type	500FG Filter Housing	Location	North America and EMEA regions
Micron Rating	98% @ 4 Micron	Flow Rate	120 gph (454 lph)

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)
