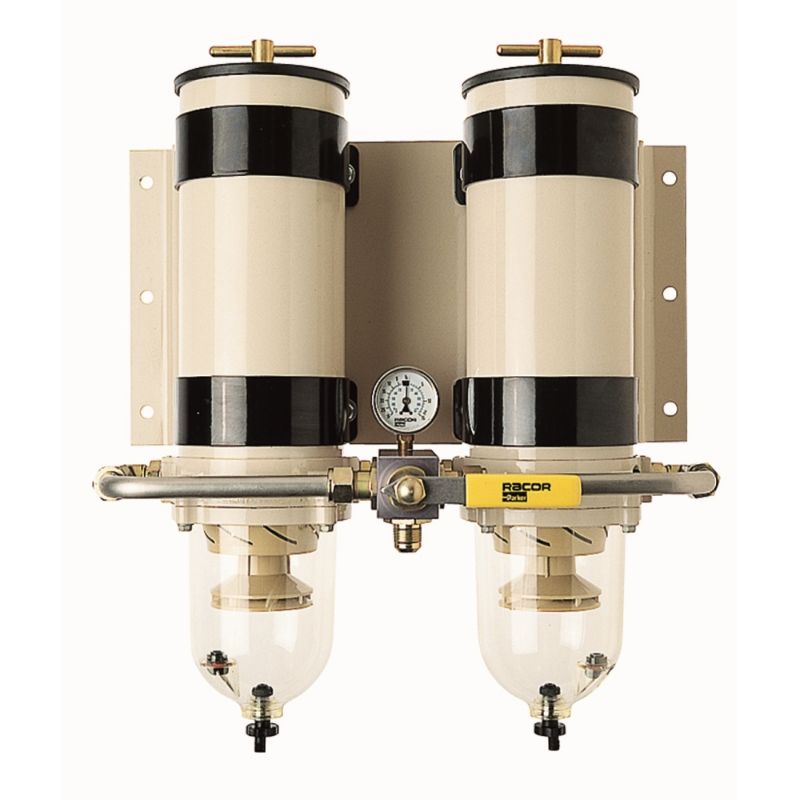

Parker 751000FHX30 - Fuel Filter Water Separator – Racor Turbine Series

The Racor Fuel Filter Water Separator Turbine Series is a three-stage filtration system that provides maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 751000FHX30

$986.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Catalog Number	See RSL0411
Valve Type	4-Way Valve	Bowl Type	Clear Engineering Plastic
Connection Type	7/8”-14 UNF-2A Male (SAE J514 37° Flare)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Series or Model Replaced	Replaced by 751000FV10
Application	Mobile Filtration	Part Type	751000 Dual Turbine Assembly
Product Type	OBSOLETE Turbine Housing	Location	North America and EMEA regions
Heater	Not Included	Flow Rate	360 gph (1363 lph)
Micron Rating	98% @ 30 Micron

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)
