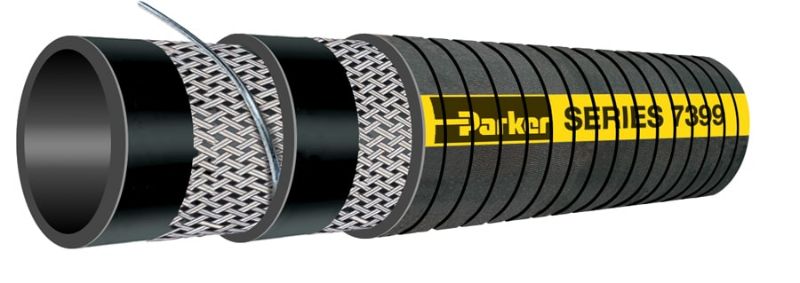

Parker 7399-1000025 - E-Z Form HT Flexible Resistant Suction Hose, High Temperature, Series 7399

E-Z Form HT Greek Corrugated High Temperature Oil Resistant Suction Hose is an extremely flexible, heat resistant hose designed for transfer of hot oil in engine applications to 302°F and 150 psi, Series 7399

AFP Availability:	Quote Required
Partner Available:	63 In Stock

Brand Parker

Part No. 7399-1000025

$25.07/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Pressure	10
Cover Structure	Greek-Corrugated	Outside Diameter	1.418
Weight	0.44	Hose Reinforcement Material	2 Plies of Textile with Wire Helix
Division	Hose Products Division	Cover Color	Black
Inside Diameter	1	Vacuum Pressure Rating	29
Design Factor	4:1	Compatible Fitting	HY Series
Package Type	Carton	Fitting Type	HY Series/43 Series
Hose Inner Tube Material	Black	Maximum Operating Temperature	150
Media	Fuels (Diesel) - Check fuel type with our catalogue chart.	Application	Engine
Cover Material	Hydrogenated Nitrile	Specifications Met	n/a
Minimum Bend Radius	1.4	Minimum Operating Temperature	-40
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	150
Standard Pack Qty (ft)	25
