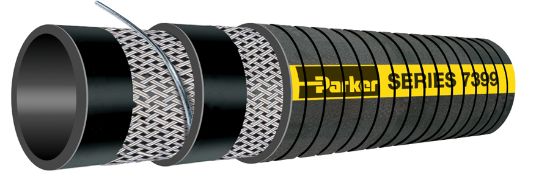

Parker 7399-0625025 - E-Z Form HT Flexible Resistant Suction Hose, High Temperature, Series 7399

E-Z Form HT Greek Corrugated High Temperature Oil Resistant Suction Hose is an extremely flexible, heat resistant hose designed for transfer of hot oil in engine applications to 302°F and 150 psi, Series 7399

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7399-0625025

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Fuels (Diesel) - Check fuel type with our catalogue chart.	Hose Reinforcement Material	2 Plies of Textile with Wire Helix
Weight	0.36	Minimum Bend Radius	1.3
Outside Diameter	1.064	Application	Engine
Hose Inner Tube Material	Black	Cover Color	Black
Compatible Fitting	HY Series	Maximum Operating Pressure	10
Minimum Operating Temperature	-40	Cover Structure	Greek-Corrugated
Inside Diameter	5/8	Fitting Type	HY Series
Cover Material	Hydrogenated Nitrile	Division	Hose Products Division
Specifications Met	N/A	Vacuum Pressure Rating	29
Design Factor	4:1	Package Type	Carton
Maximum Operating Temperature	150	Maximum Working Pressure (psi)	150
Standard Pack Qty (ft)	25	Hose I.D. (inch)	5/8
