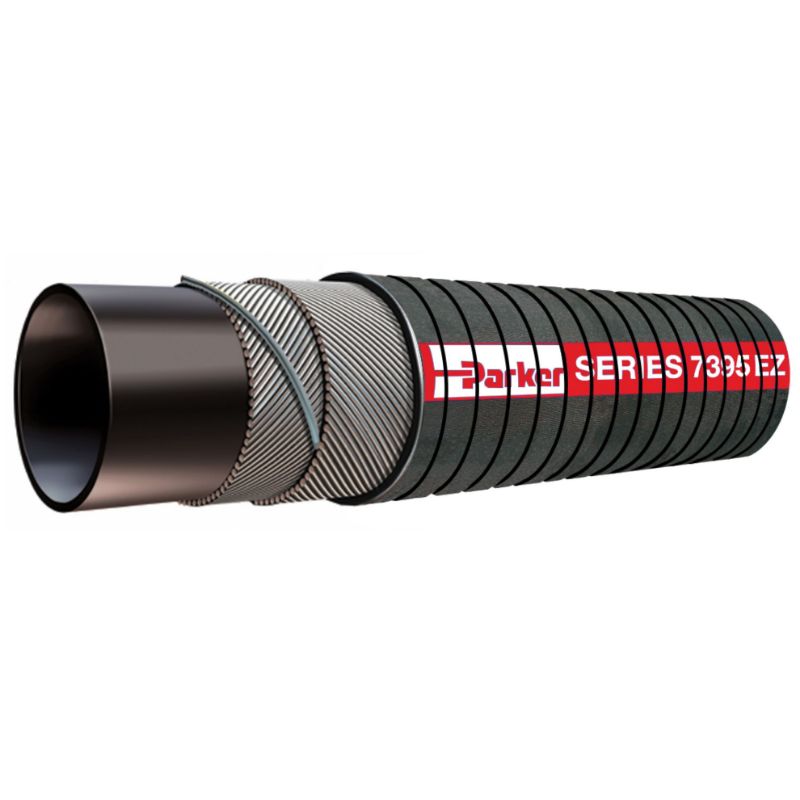

Parker 7395-1000300-RED - E-Z Form GS Suction Hose, General Service, Series 7395

E-Z Form GS Greek Corrugated General Service Suction Hose is flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi, Series 7395

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7395-1000300-RED

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Cover Color	Black	Inside Diameter	1
Application	Engine	Media	Coolants
Minimum Operating Temperature	-50	Maximum Operating Pressure	150
Maximum Operating Temperature	257	Cover Structure	Greek-Corrugated
Minimum Bend Radius	1.4	Outside Diameter	1.4
Compatible Fitting	HY	Weight	0.41
Package Type	Carton 50 ft	Cover Material	EPDM Greek corrugated finish
Specifications Met	SAE J20R2-D1	Vacuum Pressure Rating	737
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured	Hose Reinforcement Material	Multiple Braids or Plies of Textile with Wire Helix
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	150
Standard Pack Qty (ft)	300
