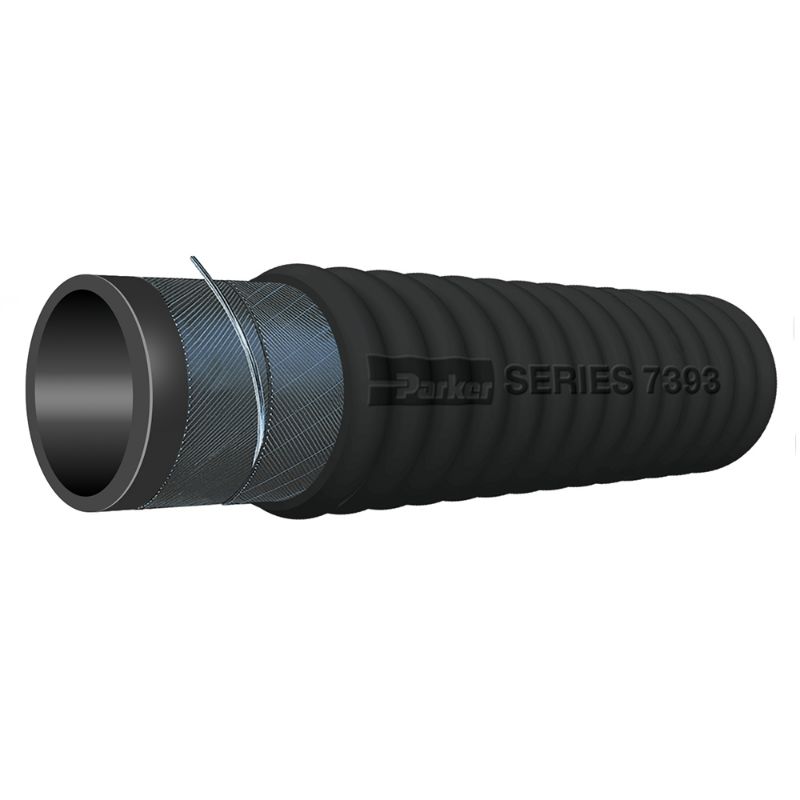

Parker 7393-3002 - Large Diameter Corrugated Material Handling/Rock Dust Hose, Series 7393

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7393-3002

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Media	Water	Package Type	Coil
Maximum Operating Pressure	50 psi	Application	Material Handling
Minimum Bend Radius	8 inch	Cover Color	Black
Minimum Operating Temperature	-30 °F	Hose Inner Tube Material	Black
Maximum Operating Temperature	160 °F	Inside Diameter	3 inch
Specifications Met	MSHA	Cover Structure	Wrapped
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Vacuum Pressure Rating	Full
Cover Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend	Weight	1.89 kg/m
Outside Diameter	86.6 mm	Maximum Working Pressure (psi)	50
Standard Pack Qty (ft)	100	Hose I.D. (inch)	3

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
