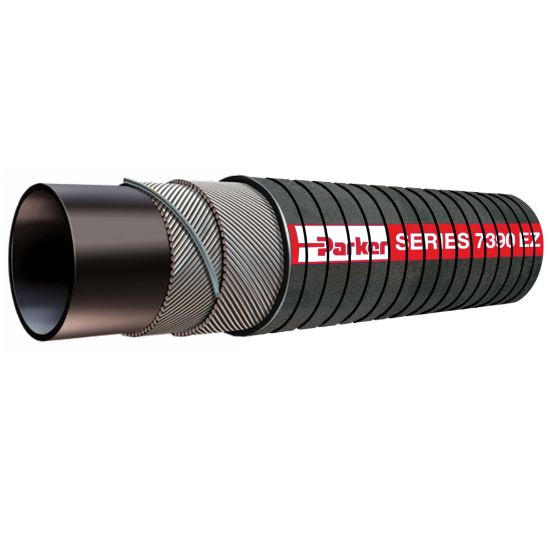

Parker 7390-1250100-RLYL - E-Z Form EPDM-P Hose, Series 7390

E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7390-1250100-RLYL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Minimum Operating Temperature	-40	Design Factor	4:1
Maximum Operating Temperature	212	Maximum Operating Pressure	150
Application	Media Transfer	Weight	0.50
Vacuum Pressure Rating	29	Cover Color	Black Red layline
Cover Material	Black synthetic rubber greek corrugated	Inside Diameter	1 1/4
Outside Diameter	1.70	Specifications Met	UL UL94 V-0 Flame Resistance Rating
Minimum Bend Radius	2.2	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured
Hose Reinforcement Material	Multiple Braids or Plies of Textile with Wire Helix
