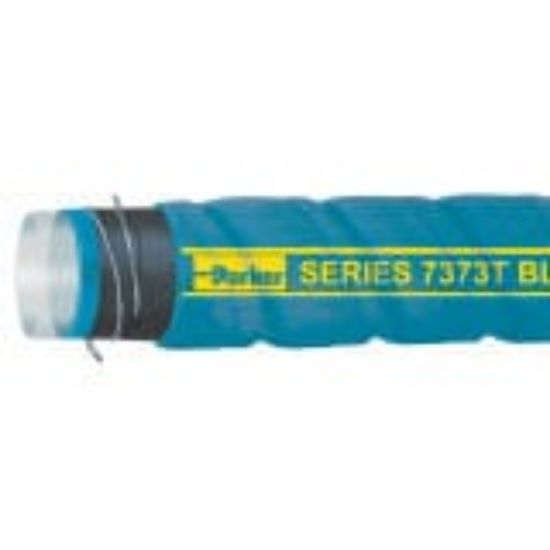

Parker 7373T-2500 - BLUE THUNDER® Large Diameter UHMWPE Corrugated Chemical Suction Hose, Series 7373T

Blue Thunder Large Diameter UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 200 psi, Series 7373T

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7373T-2500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Application	Chemical Transfer	Design Factor	4:1
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Specifications Met	FDA
Package Type	Coil	Length per Package	100 ft
Maximum Operating Pressure	14 bar	Cover Color	Blue
Compatible Fitting	n/a	Inside Diameter	2-1/2 inch
Maximum Operating Temperature	82 °C	Cover Structure	Wrapped
Minimum Bend Radius	7 inch	Media	Acids
Vacuum Pressure Rating	737 mm-Hg	Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE)
Weight	2.58 kg/m	Outside Diameter	3.154 inch
Hose Reinforcement Material	4 Plies of Textile with Dual Wire Helix	Maximum Working Pressure (psi)	200
Hose I.D. (inch)	2-1/2
